SKU: 7321BECBM-SKF

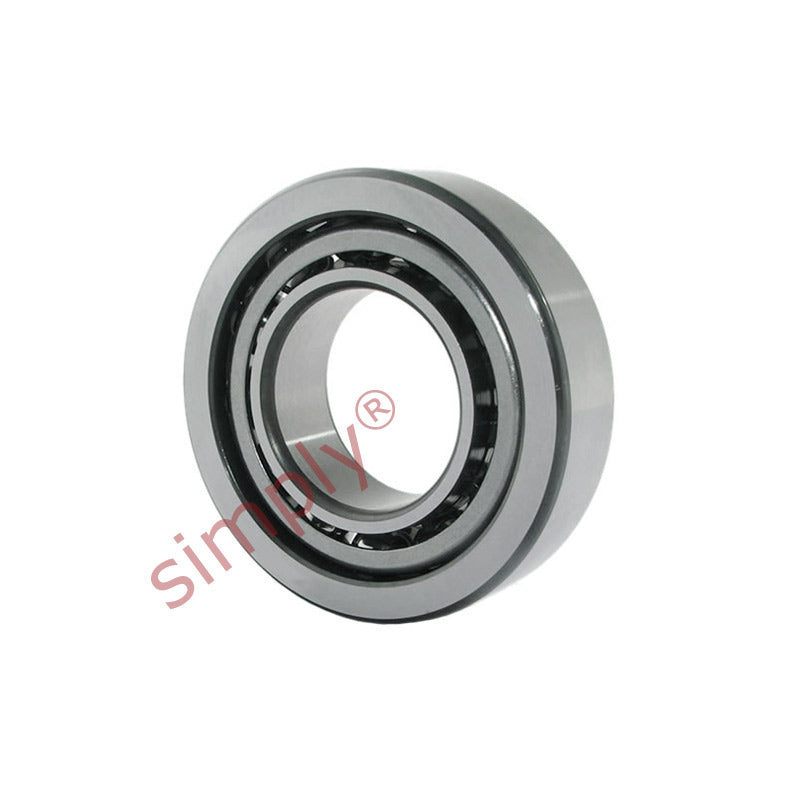

SKF 7321BECBM Single Row Angular Contact Ball Bearing 105x225x49mm
SKF 7321BECBM Single Row Angular Contact Ball Bearing 105x225x49mm
Regular price
€1.105,69
ex VAT
Regular price
Sale price
€1.105,69
ex VAT
Equivalent to: 7321BECBM
In stock
Price Break
10+
€984,06
19+
€928,78
29+
€917,72
39+
€906,67
49+
€895,61
74+
€884,55
99+
€829,27
199+
€818,21
249+
€807,15
499+
€796,10
999+
€773,98
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7321BECBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7321BECBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 225mm
- Width:
- 49mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 105mm |
|---|---|
| D | 225mm |
| B | 49mm |
| Dynamic load Cr | 203 kN |
| Static load Cor | 193 kN |
| Fatigue load limit Pu | 6.4 kN |
| Reference speed | 3400 rpm |
| Limit speed | 3600 rpm |
| Weight | 9.12 kg |
| d1 | 151.7mm |
| d2 | 127.9mm |
| D1 | 181.4mm |
| r1r2 min | 3mm |
| r3r4 min | 1.1mm |
| a | 94mm |
| da min | 119mm |
| Da max | 211mm |
| Db max | 218mm |
| ra max | 2.5mm |
| rb max | 1mm |
