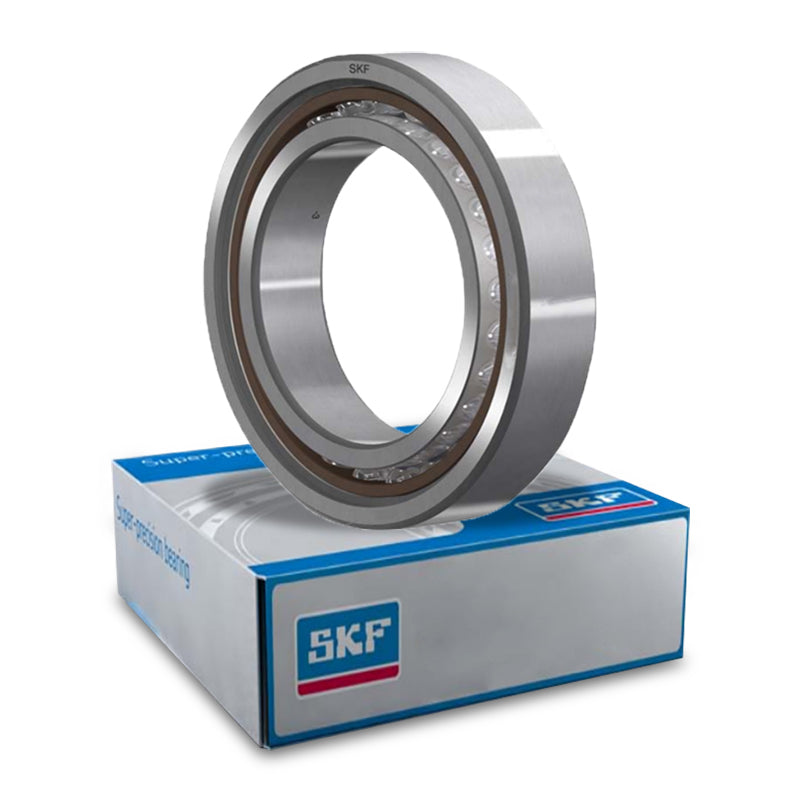

SKF 71804CDGA/HCP4 Super Precision Angular Contact Spindle Bearing 20x32x7mm

SKF Super Precision Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load-bearing capacity. Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings, this is difficult to check, in these cases, the thrust is applied from the side where the bearing number markings are not present.
In these bearings, the raceways are manufactured from chromium steel, the balls are manufactured from Silicon Nitride Si³N⁴.
This item is supplied as a single universally matchable bearing.
Please contact our Sales Support team if you need to check the specification before purchase.

Brand / Quality:

SKF - High Quality

Inside Diameter:

20mm

Outside Diameter:

32mm

Width:

7mm

Seals / Shields:

None

Style:

Single Universal Matchable Bearing

Contact Angle:

15 Degree contact angle
