SKU: 7008CTRQULP3-NSK

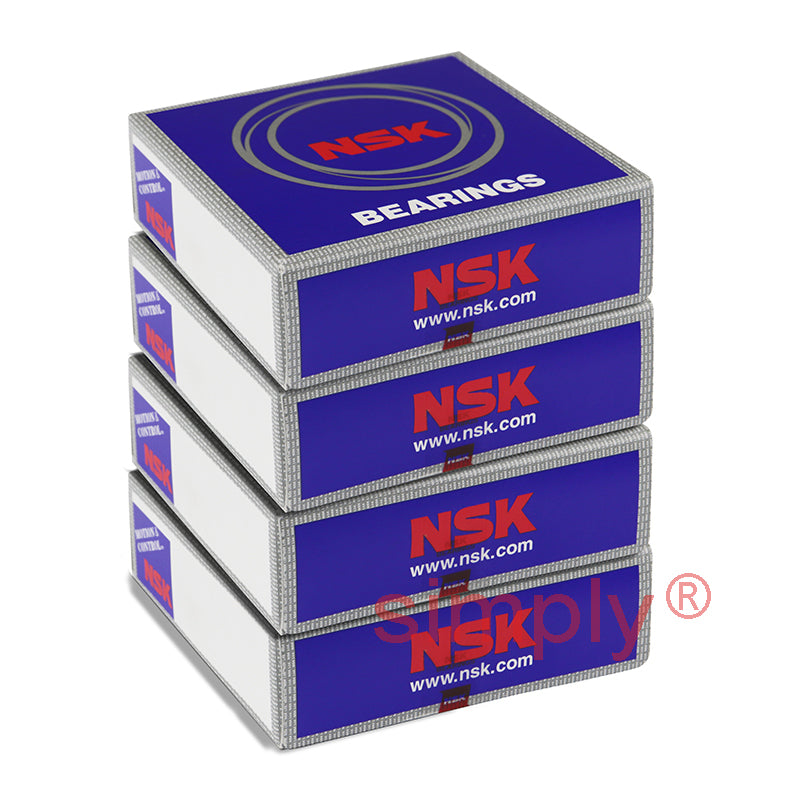

NSK 7008CTRQULP3 Super Precision Angular Contact Spindle Bearing 40x68x15mm (Set of 4)

NSK 7008CTRQULP3 Super Precision Angular Contact Spindle Bearing 40x68x15mm (Set of 4)
Regular price €664,08 ex VAT
Regular price Sale price €664,08 ex VAT
Sale Sold out

In stock

Price Break
3+ €505,76
5+ €477,35
10+ €471,67
25+ €465,98
49+ €460,30
74+ €454,62
99+ €426,20
199+ €420,52
249+ €414,84
499+ €409,16
999+ €397,79
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 40mm
D 68mm
B 15mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 21.6Kn
C<sub>or</sub> 15.9kN
Axial load Kn 10.6 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.4
Effective diameter 14.7mm
Max speed in grease 21300 rpm
Max speed in oil 32500 rpm
--- Fitting dimensions
d<sub>a min</sub> 46mm
D<sub>a max</sub> 62mm
D<sub>b max</sub> 63mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.756kg
