SKU: 6408ZZC3/5K-NTN

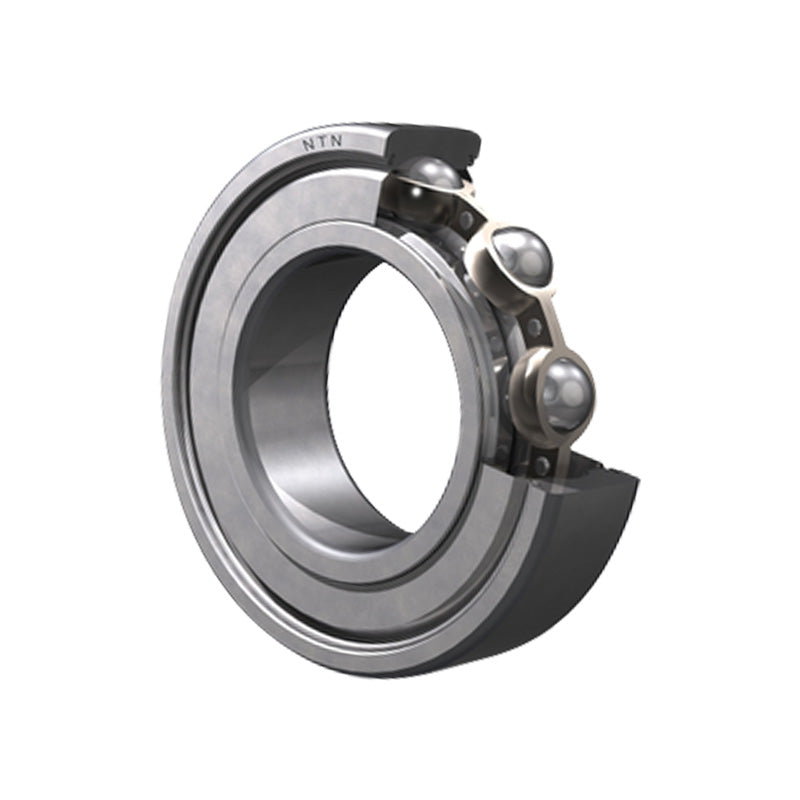

NTN 6408ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 40x110x27mm - Allow 2-3 Days
Equivalent to: 6408ZZC3 64082ZC3 6408ZZC3 64082ZRC3 6408ZZEC3 6408FFC3 6408DDC3 6408DDCC3 6408KDDCC3 EL402ZC3 EL40ZZC3 9108KDDC3 9108FFC3 108KSFFC3 773L08C3 6108PPC3
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6408ZZC3 64082ZC3 6408ZZC3 64082ZRC3 6408ZZEC3 6408FFC3 6408DDC3 6408DDCC3 6408KDDCC3 EL402ZC3 EL40ZZC3 9108KDDC3 9108FFC3 108KSFFC3 773L08C3 6108PPC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 110mm |
| B | 27mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 70.5 kN |
| C<sub>or</sub> | 36.5 kN |
| C<sub>u</sub> | 2.85 kN |
| f<sub>0</sub> | 12.3 kN |
| Grease | 7000 rpm |
| Oil | 8200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 49mm |
| d<sub>a</sub> Max. | 61.5mm |
| D<sub>a</sub> Max. | 101mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 1.23 kg |
