SKU: 6326/C3VL2071-SKF

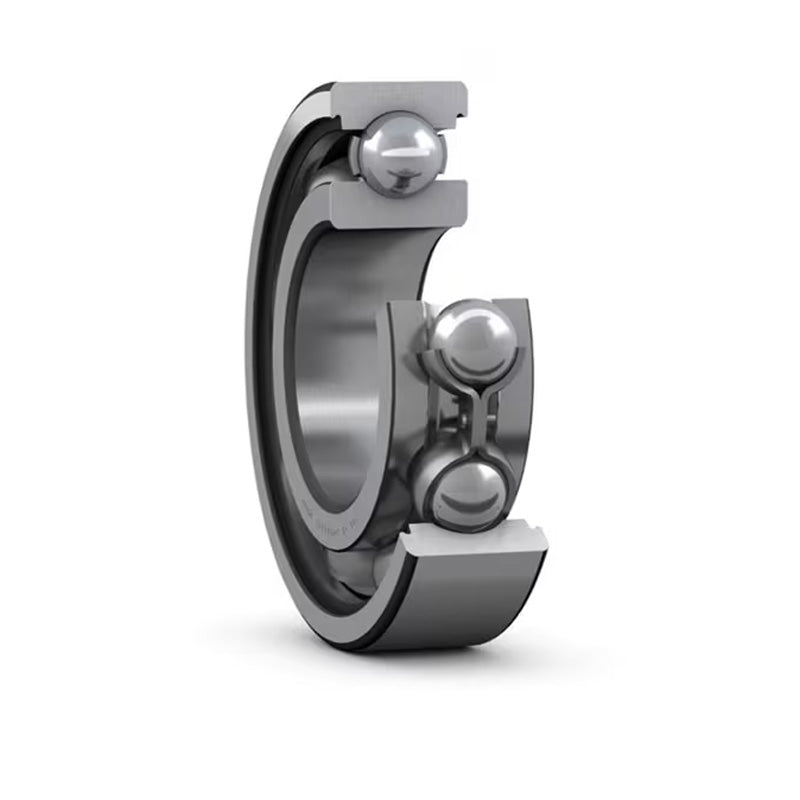

SKF 6326C3VL2071 Insocoat Deep Groove Ball Bearing 130x280x58mm
SKF 6326C3VL2071 Insocoat Deep Groove Ball Bearing 130x280x58mm
Regular price
€2.421,54
ex VAT
Regular price
Sale price
€2.421,54
ex VAT
In stock
Price Break
10+
€2.155,17
19+
€2.034,09
29+
€2.009,88
39+
€1.985,66
49+
€1.961,45
74+
€1.937,23
99+
€1.816,16
199+
€1.791,94
249+
€1.767,72
499+
€1.743,51
999+
€1.695,08
Couldn't load pickup availability
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 280mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 130mm |
|---|---|
| D | 280mm |
| B | 58mm |
| Dynamic load Cr | 229 kN |
| Static load Cor | 216 kN |
| Fatigue load limit Pu | 6.3 kN |
| Reference speed | 5000 rpm |
| Limiting speed | 3200 rpm |
| Weight | 14.7 kg |
| d1 | 177mm |
| D1 | 233mm |
| r1r2 min | 4mm |
| da min | 147mm |
| da max | 171mm |
| Da max | 263mm |
| ra max | 3mm |
| kr | 0.03 |
| fo | 14 |
