SKU: 6321LLUC3/5K-NTN

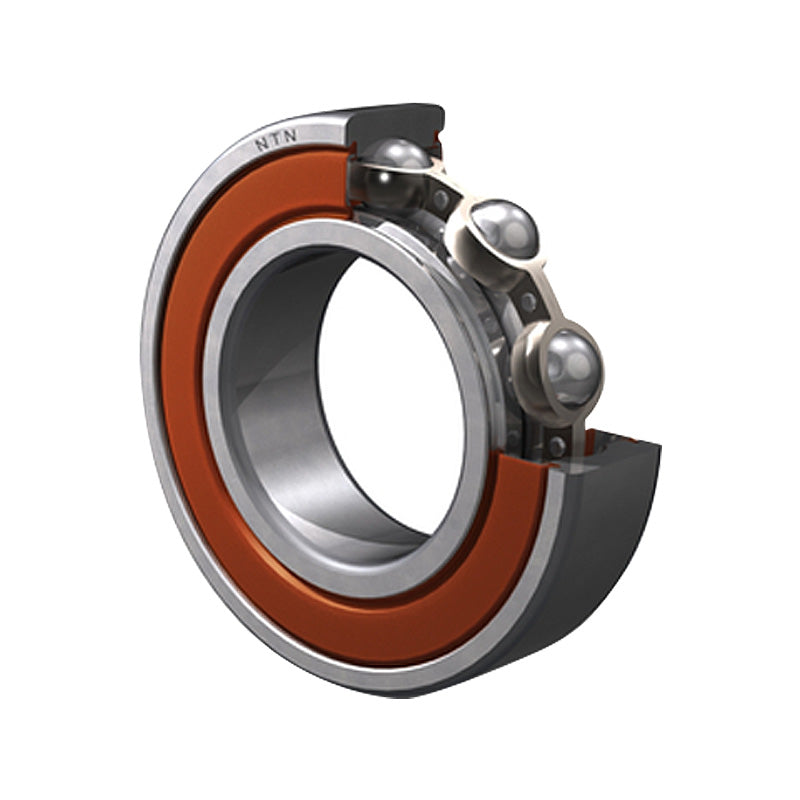

NTN 6321LLUC3/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 105x225x49mm - Allow 2-3 Days
Equivalent to: 6321NSEC3 6321DUC3 6321RSC3 6321RSHC3 6321PC3 6321RSRC3 6321LUC3 63212NSEC3 6321DDUC3 63212RSC3 6321-2RSC3 63212RS1C3 63212RSHC3 6321PPC3 63212RSRC3 6321LLUC3 6321RS2C3 63212RS2C3 63212RSLC3 6321LFSC3 6321EEC3 321PC3 321SZC3 Z9621C3 1321RC3
In stock
Price Break
Share this product
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6321NSEC3 6321DUC3 6321RSC3 6321RSHC3 6321PC3 6321RSRC3 6321LUC3 63212NSEC3 6321DDUC3 63212RSC3 6321-2RSC3 63212RS1C3 63212RSHC3 6321PPC3 63212RSRC3 6321LLUC3 6321RS2C3 63212RS2C3 63212RSLC3 6321LFSC3 6321EEC3 321PC3 321SZC3 Z9621C3 1321RC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 225mm
- Width:
- 49mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 105mm |
| D | 225mm |
| B | 49mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 204 kN |
| C<sub>or</sub> | 153 kN |
| C<sub>u</sub> | 9.35 kN |
| f<sub>0</sub> | 13.2 kN |
| Speed | 2100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 118mm |
| d<sub>a</sub> Max. | 134mm |
| D<sub>a</sub> Max. | 212mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight Kg | 8.05 kg |
