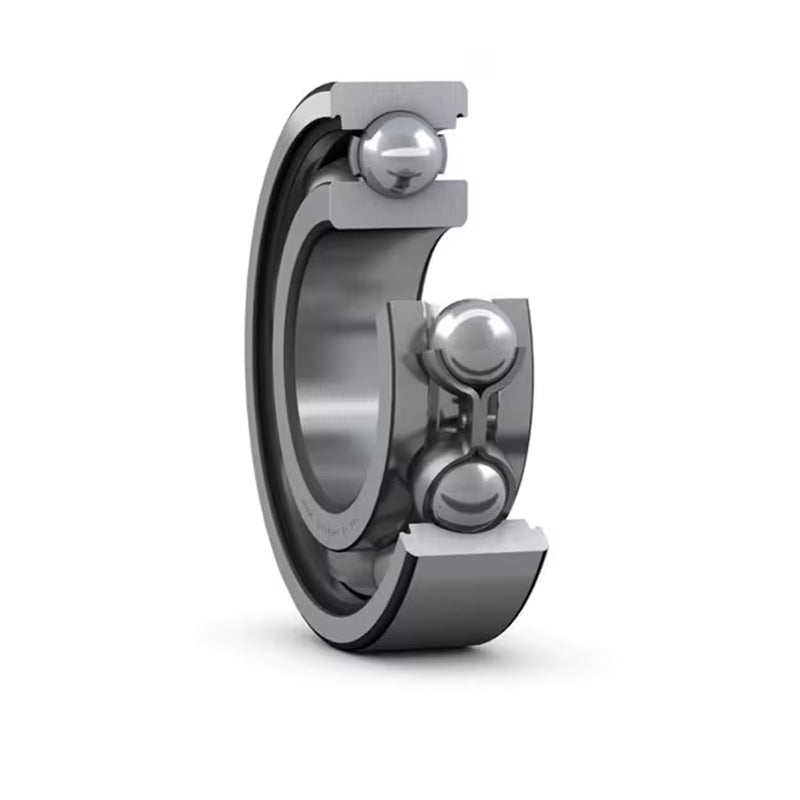

SKF 6320MC3VL0241 Open Deep Groove Ball Bearing 100x215x47mm
SKF 6320MC3VL0241 Open Deep Groove Ball Bearing 100x215x47mm
Regular price
€2.047,21
ex VAT
Regular price
Sale price
€2.047,21
ex VAT
In stock
Price Break
10+
€1.822,02
19+
€1.719,66
29+
€1.699,18
39+
€1.678,71
49+
€1.658,24
74+
€1.637,77
99+
€1.535,41
199+
€1.514,94
249+
€1.494,46
499+
€1.473,99
999+
€1.433,05
Couldn't load pickup availability
Description
Description
|
Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) is applied to the bearing during manufacture to provide electrical insulation |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 47mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 100mm |
|---|---|
| D | 215mm |
| B | 47mm |
| Dynamic load | 174 kN |
| Static load | 140 kN |
| Fatigue load limit Pu | 4.75 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 4300 rpm |
| Weight | 7 kg |
| d1 | 136mm |
| D1 | 179mm |
| D2 | 184mm |
| r1r2 min | 3mm |
| da min | 114mm |
| Da max | 201mm |
| ra max | 2.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 13 |
