SKU: 6318-NTN

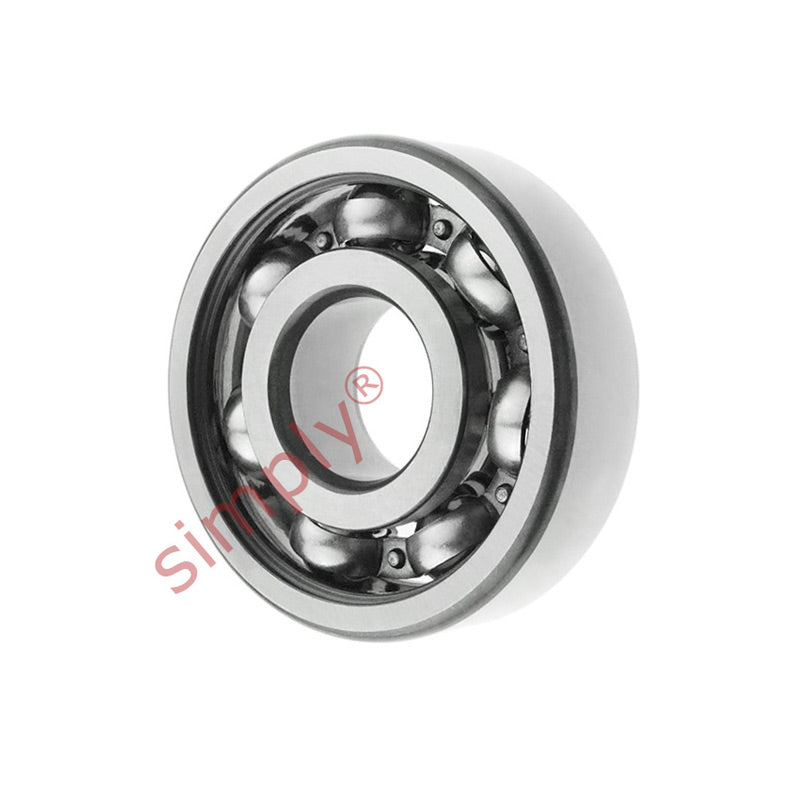

NTN 6318 Open Type Deep Groove Ball Bearing 90x190x43mm
NTN 6318 Open Type Deep Groove Ball Bearing 90x190x43mm
Regular price
€189,20
ex VAT
Regular price
Sale price
€189,20
ex VAT
Equivalent to: 6318CM 318K 1318 318KS 6318 3318 19B
In stock
Price Break
3+
€144,09
5+
€136,00
10+
€134,38
25+
€132,76
49+
€131,14
74+
€129,52
99+
€121,43
199+
€119,81
249+
€118,19
499+
€116,57
999+
€113,33
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6318CM 318K 1318 318KS 6318 3318 19B
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 190mm
- Width:
- 43mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 90mm |
| D | 190mm |
| B | 43mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 158 kN |
| C<sub>or</sub> | 107 kN |
| C<sub>u</sub> | 7.1 kN |
| f<sub>0</sub> | 13.3 kN |
| Grease | 3600 rpm |
| Oil | 4200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 103mm |
| D<sub>a</sub> Max. | 177mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight | 4.91 kg |
