SKU: 6317ZZC3/5K-NTN

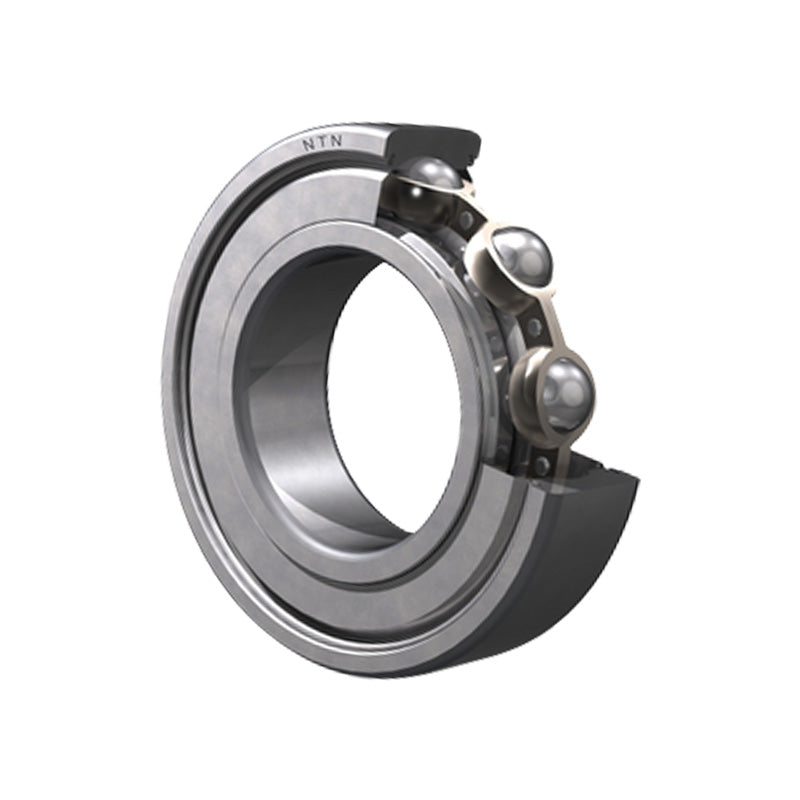

NTN 6317ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 85x180x41mm
Equivalent to: 6317ZZC3 63172ZC3 6317ZZC3 63172ZRC3 6317ZZEC3 6317FFC3 6317DDC3 6317DDCC3 6317KDDCC3 EL852ZC3 EL85ZZC3 9117KDDC3 9117FFC3 117KSFFC3 773L17C3 6117PPC3
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6317ZZC3 63172ZC3 6317ZZC3 63172ZRC3 6317ZZEC3 6317FFC3 6317DDC3 6317DDCC3 6317KDDCC3 EL852ZC3 EL85ZZC3 9117KDDC3 9117FFC3 117KSFFC3 773L17C3 6117PPC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 180mm
- Width:
- 41mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 85mm |
| D | 180mm |
| B | 41mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 147 kN |
| C<sub>or</sub> | 97 kN |
| C<sub>u</sub> | 6.55 kN |
| f<sub>0</sub> | 13.3 kN |
| Grease | 3800 rpm |
| Oil | 4500 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 98mm |
| d<sub>a</sub> Max. | 112mm |
| D<sub>a</sub> Max. | 167mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight | 4.23 kg |
