SKU: 6315-2RS1/C3-SKF

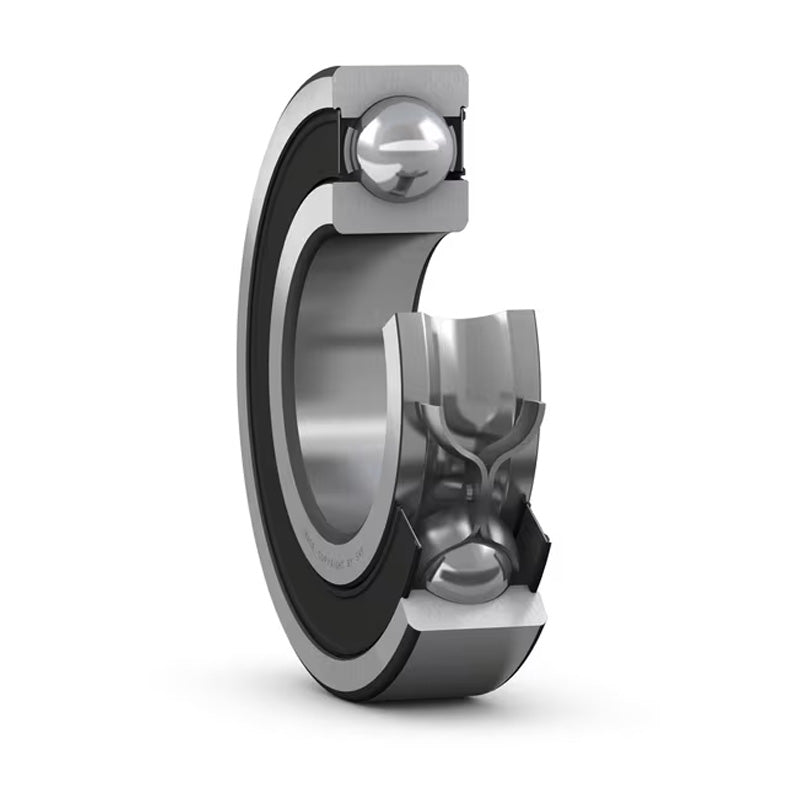

SKF 63152RS1C3 Rubber Sealed Deep Groove Ball Bearing 75x160x37mm
SKF 63152RS1C3 Rubber Sealed Deep Groove Ball Bearing 75x160x37mm
Regular price
€252,63
ex VAT
Regular price
Sale price
€252,63
ex VAT
Equivalent to: 6315NSEC3 6315DUC3 6315RSC3 6315RSHC3 6315PC3 6315RSRC3 6315LUC3 63152NSEC3 6315DDUC3 63152RSC3 63152RSHC3 6315PPC3 63152RSRC3 6315LLU
In stock
Price Break
4+
€192,40
10+
€181,59
20+
€179,43
30+
€177,27
50+
€175,11
75+
€172,94
100+
€162,13
200+
€159,97
250+
€157,81
500+
€155,65
1000+
€151,33
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6315NSEC3 6315DUC3 6315RSC3 6315RSHC3 6315PC3 6315RSRC3 6315LUC3 63152NSEC3 6315DDUC3 63152RSC3 63152RSHC3 6315PPC3 63152RSRC3 6315LLU
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load C | 119 kN |
| Static load Co | 76.5 kN |
| Fatigue load limit Pu | 3 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 2800 rpm |
| Weight | 3 kg |
| d1 | 101mm |
| d2 | 138mm |
| r1r2 min | 2.1mm |
| da min | 87mm |
| Da max | 148mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
