SKU: 6314-2RS1-EU

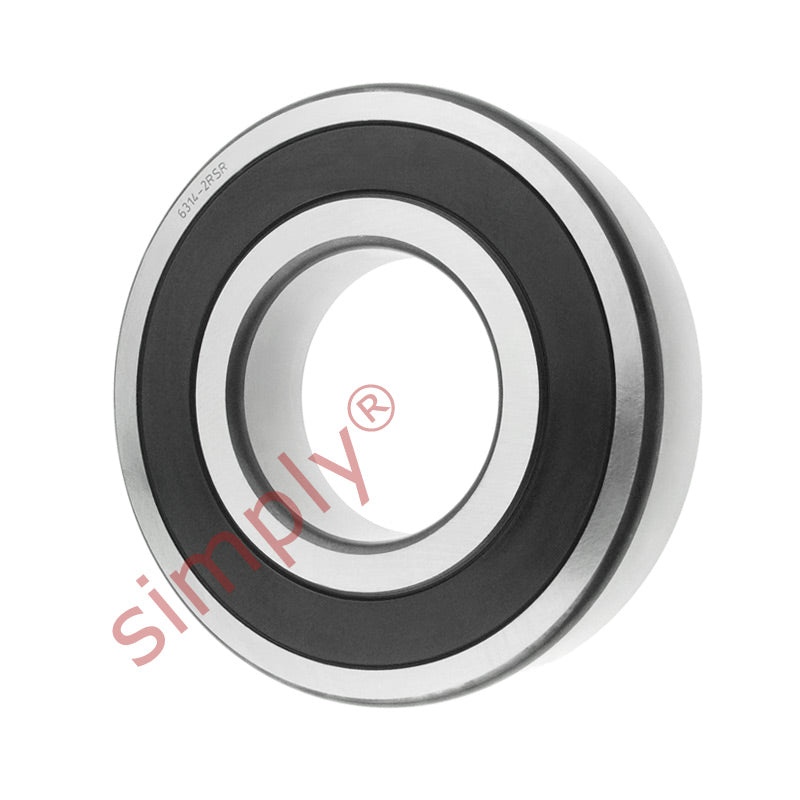

63142RS Budget Rubber Sealed Deep Groove Ball Bearing 70x150x35mm
Equivalent to: 6314NSE 6314DU 6314RS 63142RSH 6314P 6314RSR 6314LU 63142NSE 6314DDU 63142RS 631422RSH 6314PP 63142RSR 6314LLU 63142RS2 6314RS2 63142RSH 63142RS1
In stock
Price Break
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6314NSE 6314DU 6314RS 63142RSH 6314P 6314RSR 6314LU 63142NSE 6314DDU 63142RS 631422RSH 6314PP 63142RSR 6314LLU 63142RS2 6314RS2 63142RSH 63142RS1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| r min | 2.1mm |
| Dynamic load Cr | 104 kN |
| Static load Cor | 68.2 kN |
| Speed in grease | 4500 rpm |
| Speed in oil | 5400 rpm |
