SKU: 6312-2RS1/C3-SKF

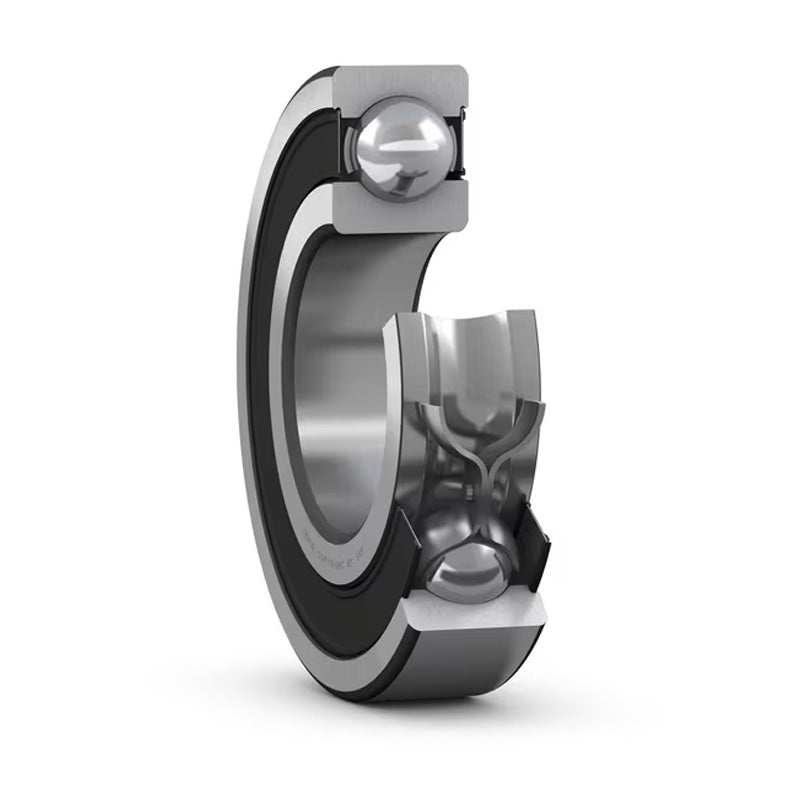

SKF 63122RS1C3 Rubber Sealed Deep Groove Ball Bearing 60x130x31mm
SKF 63122RS1C3 Rubber Sealed Deep Groove Ball Bearing 60x130x31mm
Regular price
€72,51
ex VAT
Regular price
Sale price
€72,51
ex VAT
Equivalent to: 6312NSEC3 6312DUC3 6312RSC3 6312RSHC3 6312PC3 6312RSRC3 6312LUC3 63122NSEC3 6312DDUC3 63122RSC3 63122RSHC3 6312PPC3 63122RSRC3 6312LLU
In stock
Price Break
4+
€55,22
10+
€52,12
20+
€51,50
30+
€50,88
50+
€50,26
75+
€49,64
100+
€46,54
200+
€45,92
250+
€45,30
500+
€44,68
1000+
€43,44
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6312NSEC3 6312DUC3 6312RSC3 6312RSHC3 6312PC3 6312RSRC3 6312LUC3 63122NSEC3 6312DDUC3 63122RSC3 63122RSHC3 6312PPC3 63122RSRC3 6312LLU
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 31mm |
| Dynamic load C | 85.2 kN |
| Static load Co | 52 kN |
| Fatigue load limit Pu | 2.2 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 3400 rpm |
| Weight | 1.7 kg |
| d1 | 81.9mm |
| D2 | 112mm |
| r1r2 min | 2.1mm |
| da min | 72mm |
| Da max | 118mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
