SKU: 6302-2RS2-C3-NKE

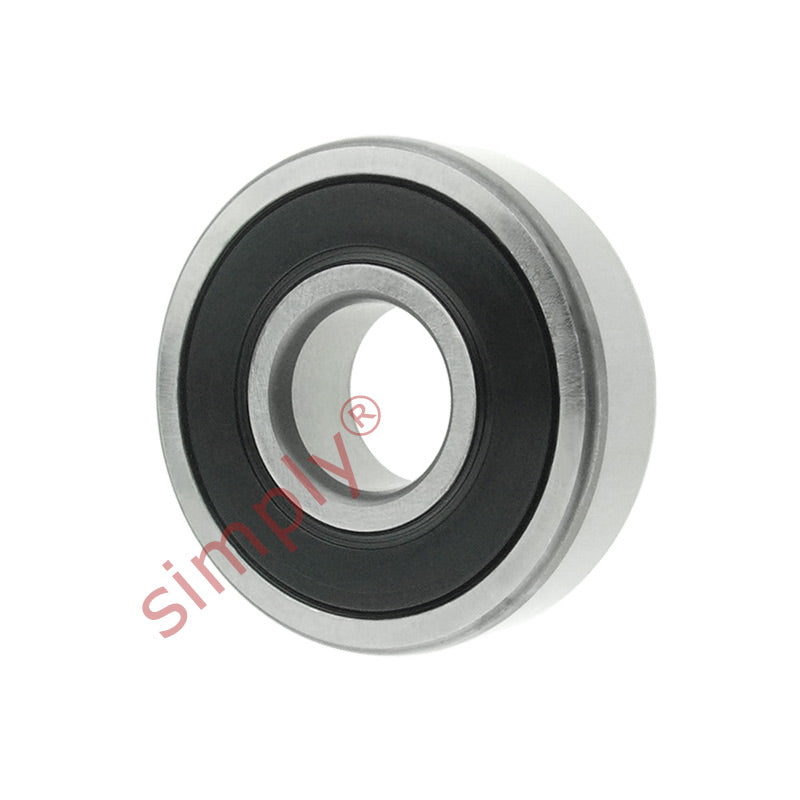

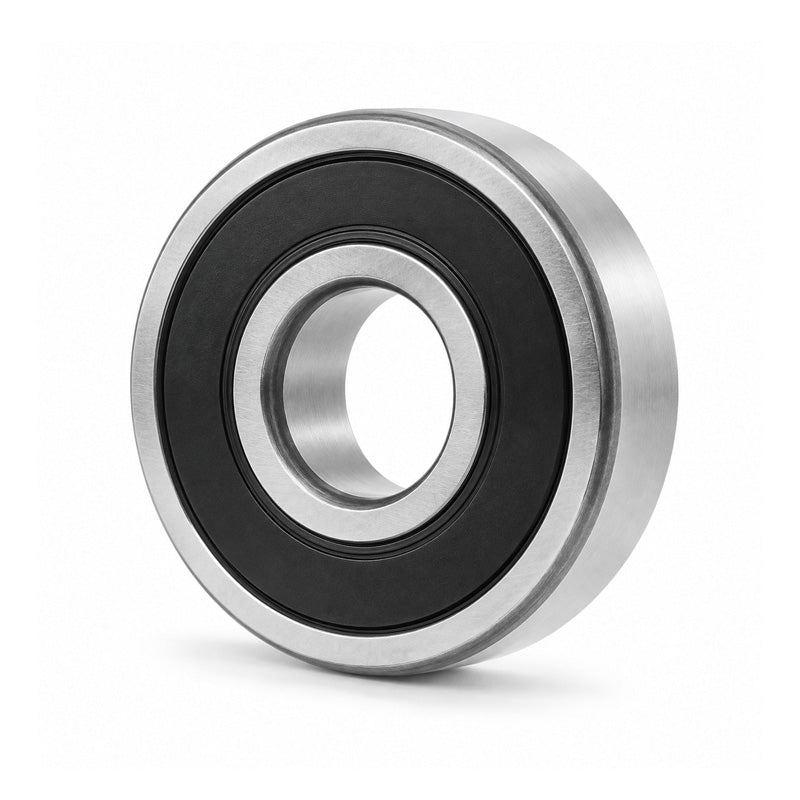

NKE 63022RS2C3 Rubber Sealed Deep Groove Ball Bearing 15x42x13mm
NKE 63022RS2C3 Rubber Sealed Deep Groove Ball Bearing 15x42x13mm
Regular price
€8,34
ex VAT
Regular price
Sale price
€8,34
ex VAT
Equivalent to: 6302NSEC3 6302DUC3 6302RSC3 6302RSHC3 6302PC3 6302RSRC3 6302LUC3 63022NSEC3 6302DDUC3 63022RSC3 63022RS1C3 6302PPC3 63022RSRC3 6302LLU
In stock
Price Break
4+
€6,35
10+
€6,00
20+
€5,93
30+
€5,85
50+
€5,78
75+
€5,71
100+
€5,35
200+
€5,28
250+
€5,21
500+
€5,14
1000+
€5,00
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6302NSEC3 6302DUC3 6302RSC3 6302RSHC3 6302PC3 6302RSRC3 6302LUC3 63022NSEC3 6302DDUC3 63022RSC3 63022RS1C3 6302PPC3 63022RSRC3 6302LLU
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 15mm |
|---|---|
| D | 42mm |
| B | 13mm |
| Dynamic load C | 11.9 kN |
| Static load Co | 5.4 kN |
| Fatigue load limit Pu | 0.228 kN |
| Reference speed | 38000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.082 kg |
| d2 | 21.1mm |
| D2 | 36.3mm |
| r1r2 min | 1mm |
| da min | 20.6mm |
| da max | 21mm |
| Da max | 36.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 12 |
