SKU: 6226/C3VL2071-SKF

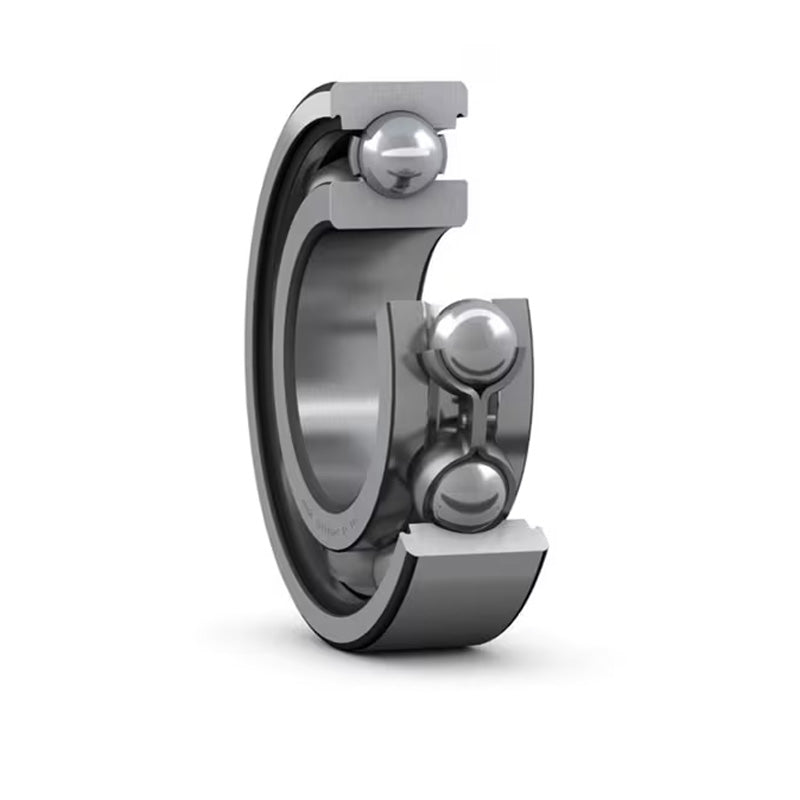

SKF 6226C3VL2071 Insocoat Deep Groove Ball Bearing 130x230x40mm
SKF 6226C3VL2071 Insocoat Deep Groove Ball Bearing 130x230x40mm
Regular price
€1.992,26
ex VAT
Regular price
Sale price
€1.992,26
ex VAT
In stock
Price Break
10+
€1.773,11
19+
€1.673,50
29+
€1.653,58
39+
€1.633,65
49+
€1.613,73
74+
€1.593,81
99+
€1.494,20
199+
€1.474,27
249+
€1.454,35
499+
€1.434,43
999+
€1.394,58
Couldn't load pickup availability
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 230mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 130mm |
|---|---|
| D | 230mm |
| B | 40mm |
| Dynamic load Cr | 156 kN |
| Static load Cor | 132 kN |
| Fatigue load limit Pu | 4.15 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 3600 rpm |
| Weight | 5.75 kg |
| d1 | 160mm |
| D1 | 199mm |
| D2 | 205mm |
| r1r2 min | 3mm |
| da min | 144mm |
| da max | 154mm |
| Da max | 216mm |
| ra max | 2.5mm |
| kr | 0.025 |
| fo | 15 |
