SKU: 6221-2Z-SKF

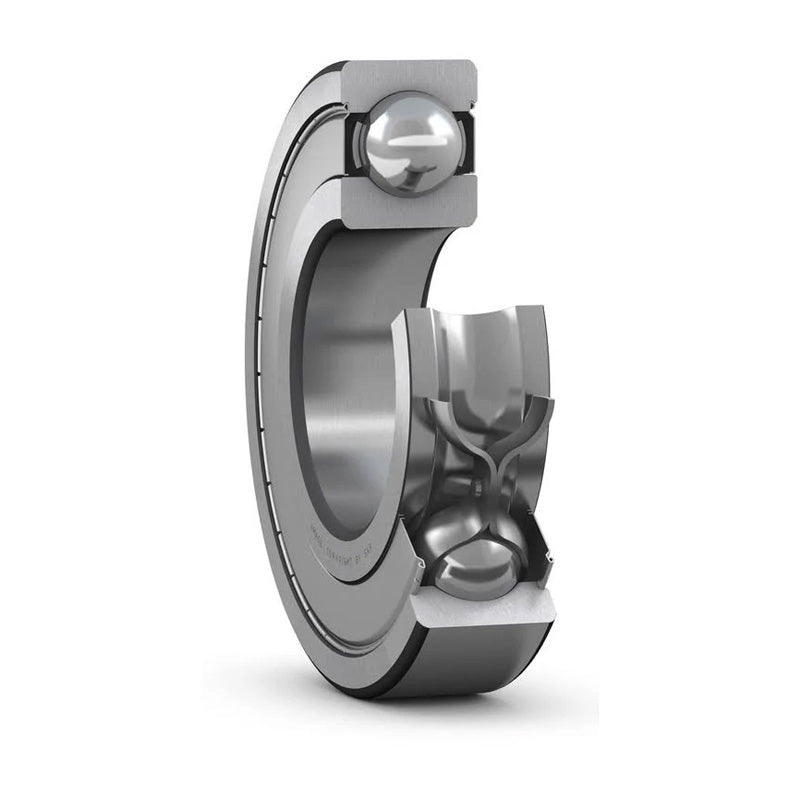

SKF 62212Z Metal Shielded Deep Groove Ball Bearing 105x190x36mm
SKF 62212Z Metal Shielded Deep Groove Ball Bearing 105x190x36mm
Regular price
€340,60
ex VAT
Regular price
Sale price
€340,60
ex VAT
Equivalent to: 62212KD 62212D 62212F 62212ZE 62212ZR 6221ZZ 62212Z 6221ZZ
In stock
Price Break
4+
€259,40
10+
€244,83
20+
€241,91
30+
€239,00
50+
€236,08
75+
€233,17
100+
€218,60
200+
€215,68
250+
€212,77
500+
€209,85
1000+
€204,02
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 62212KD 62212D 62212F 62212ZE 62212ZR 6221ZZ 62212Z 6221ZZ
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 190mm
- Width:
- 36mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard

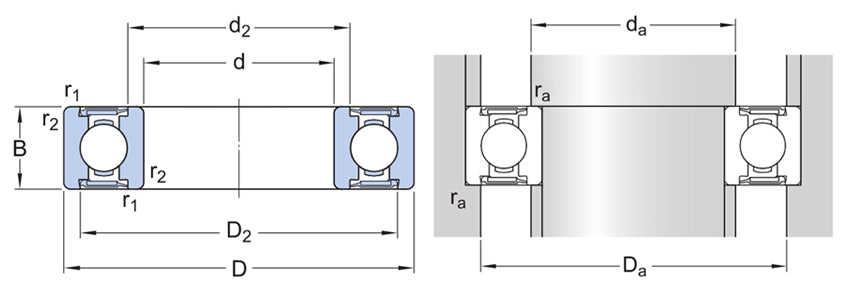

Technical
Technical
| d | 105mm |
|---|---|
| D | 190mm |
| B | 36mm |
| Dynamic load C | 140 kN |
| Static load Co | 104 kN |
| Fatigue load limit Pu | 3.65 kN |
| Reference speed | 7000 rpm |
| Limiting speed | 3600 rpm |
| Weight | 3.7 kg |
| d1 | 131mm |
| d2 | 0mm |
| D2 | 167mm |
| r1r2 min | 2.1mm |
| da min | 117mm |
| da max | 0mm |
| Da max | 178mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
