SKU: 6211LLUNR/2AS-NTN

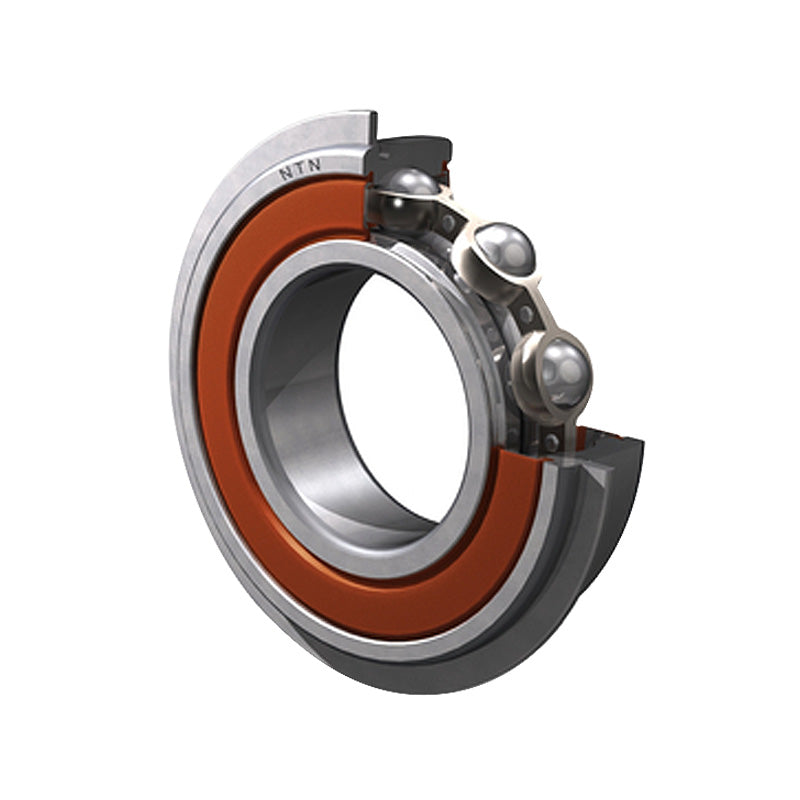

NTN 6211LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 55x100x21mm
Equivalent to: 6211LLUNRCM 6211LLUNR 6211NSENR 6211DUNR 6211RSNR 6211RSHNR 6211PNR 6211RSRNR 6211LUNR 62112NSENR 6211DDUNR 62112RSNR 6211-2RSNR 62112RS1NR 62112RSHNR 6211PPNR 62112RSRNR 6211LLUNR 6211RS2NR 62112RS2NR 62112RSLNR 6211LFSNR 6211EENR Z49511 211SZG
In stock
Price Break
Description
Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 100mm |
| B | 21mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 48 kN |
| C<sub>or</sub> | 29.2 kN |
| C<sub>u</sub> | 2.29 kN |
| f<sub>0</sub> | 14.3 |
| --- | Fitting Dimensions |
| Speed | 4300rpm |
| D<sub>1</sub> Max. | 96.8mm |
| a Max. | 3.28mm |
| b Min. | 2.7mm |
| r<sub>o</sub> Max. | 0.6mm |
