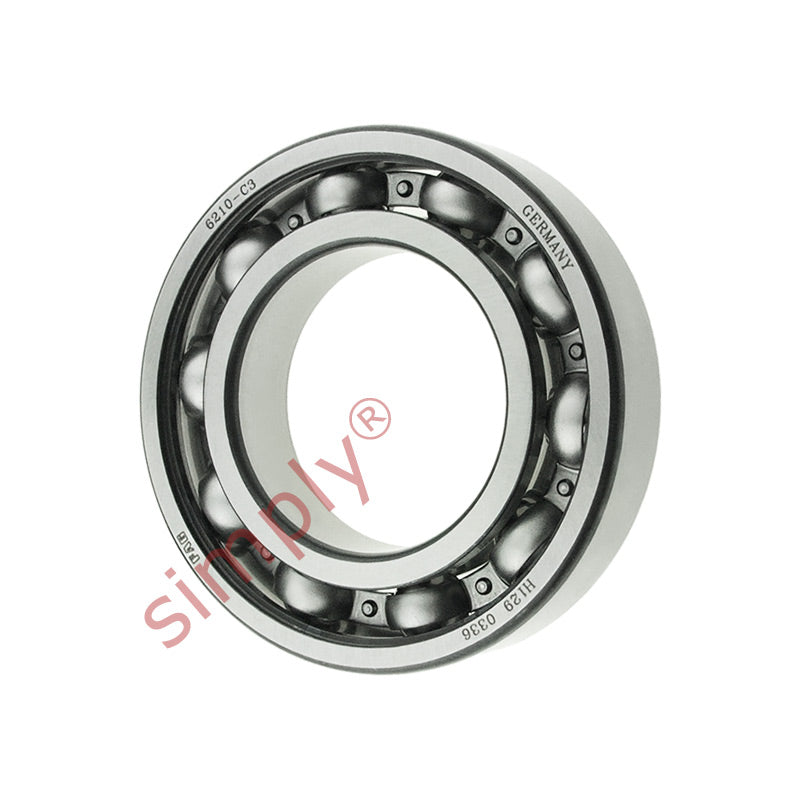

FAG 6210C3 Open Deep Groove Ball Bearing 50x90x20mm
FAG 6210C3 Open Deep Groove Ball Bearing 50x90x20mm
Regular price
€15,73
ex VAT
Regular price
Sale price
€15,73
ex VAT
Equivalent to: 6210 6210C3
In stock
Price Break
10+
€11,98
19+
€11,31
29+
€11,17
39+
€11,04
49+
€10,90
74+
€10,77
99+
€10,10
199+
€9,96
249+
€9,83
499+
€9,69
999+
€9,42
Share this product
Description
Description
|
FAG Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 6210 6210C3
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 20mm |
| Dynamic load C | 37.1 kN |
| Static load Co | 23.2 kN |
| Fatigue load limit Pu | 0.98 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 10000 rpm |
| Mass | 0.46 kg |
| d1 | 62.5mm |
| D1 | 77.4mm |
| D2 | 81.6mm |
| r1r2 min | 1.1mm |
| da min | 57mm |
| Da max | 83mm |
| ra max | 1mm |
| Calc factor Kr | 0.025 |
| Calc factor | 14 |
