SKU: 6209NR/C3-FAG

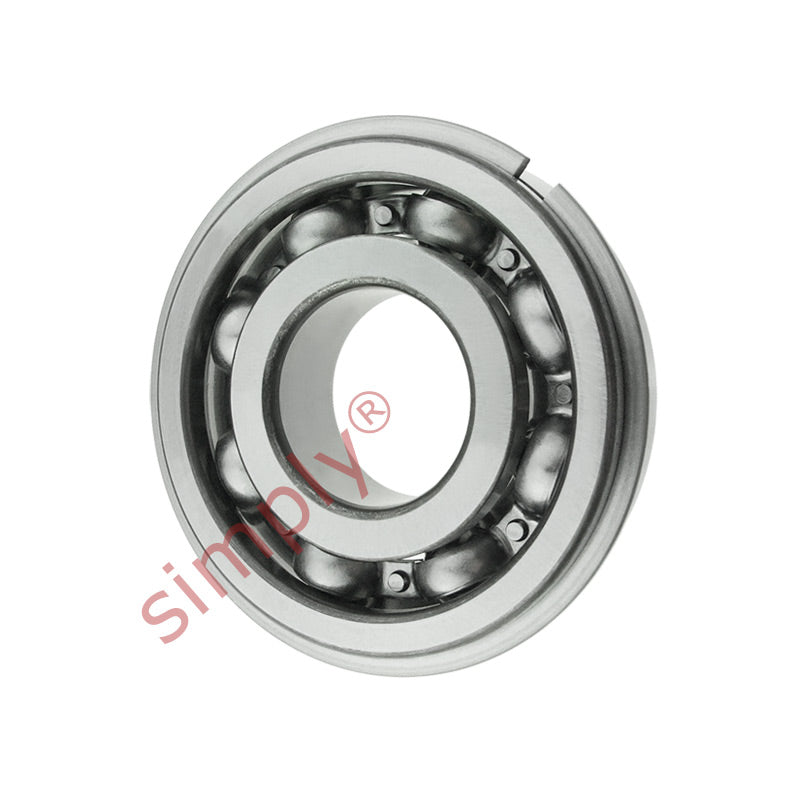

6209NRC3 Deep Groove Ball Bearing with Snap Ring 45x85x19mm
6209NRC3 Deep Groove Ball Bearing with Snap Ring 45x85x19mm
Regular price
€30,83
ex VAT
Regular price
Sale price
€30,83
ex VAT
In stock
Price Break
10+
€27,44
19+
€25,90
29+
€25,59
39+
€25,28
49+
€24,97
74+
€24,66
99+
€23,12
199+
€22,81
249+
€22,51
499+
€22,20
999+
€21,58
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| Dyamic load C | 35.1 kN |
| Static load Co | 21.6 kN |
| Fatigue load limit Pu | 0.92 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 11000 rpm |
| Mass | 0.41 kg |
| d1 | 57.6mm |
| d2 | 72.4mm |
| D2 | 75.2mm |
| r1r2 min | 1.1mm |
| da min | 52 |
