SKU: 6205NRC3-NSK

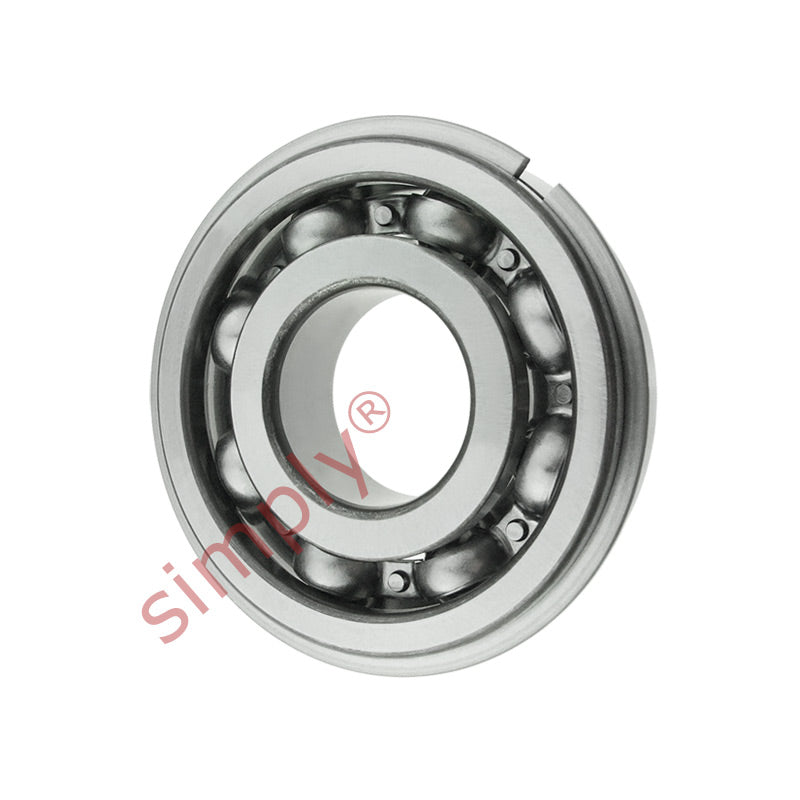

NSK 6205NRC3 Open Type Deep Groove Ball Bearing With Snap Ring 25x52x15mm
NSK 6205NRC3 Open Type Deep Groove Ball Bearing With Snap Ring 25x52x15mm
Regular price
€8,73
ex VAT
Regular price
Sale price
€8,73
ex VAT
In stock
Price Break
4+
€6,65
10+
€6,27
20+
€6,20
30+
€6,13
50+
€6,05
75+
€5,98
100+
€5,60
200+
€5,53
250+
€5,45
500+
€5,38
1000+
€5,23
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| r min | 1mm |
| Dynamic load Cr | 14000 N (1430 kgf) |
| Static load Cor | 7850 N (800 kgf) |
| Factor | 13.9 |
| Speed in grease | 13000 rpm |
| Speed in oil | 15000 rpm |
| a max | 2.46mm |
| b min | 1.35mm |
| D1 max | 49.73mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 57.9mm |
| f max | 1.12mm |
| da2 min | 30mm |
| da2max | 32mm |
| Da2max | 47mm |
| ra max | 1mm |
| Dx min | 58.5mm |
| Cy max | 3.3mm |
| Weight | 0.129 kg |
