SKU: 6204ETN9-SKF

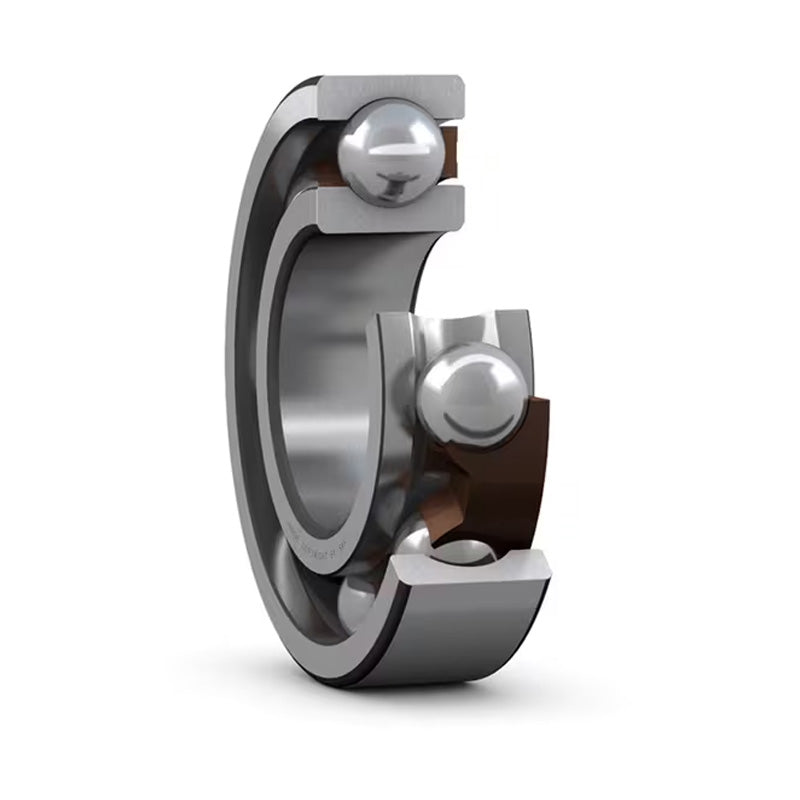

SKF 6204ETN9 Open Deep Groove Ball Bearing with Fibre Cage 20x47x14mm
SKF 6204ETN9 Open Deep Groove Ball Bearing with Fibre Cage 20x47x14mm
Regular price
€21,22
ex VAT
Regular price
Sale price
€21,22
ex VAT
In stock
Price Break
4+
€16,16
10+
€15,25
20+
€15,07
30+
€14,89
50+
€14,71
75+
€14,53
100+
€13,62
200+
€13,44
250+
€13,26
500+
€13,08
1000+
€12,71
Description
Description
|
Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load | 15.6 kN |
| Static load | 7.65 kN |
| Fatigue load limit Pu | 0.325 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 20000 rpm |
| Weight | 0.096 kg |
| d1 | 28.2mm |
| D1 | 39.6mm |
| D2 | n/amm |
| r1r2 min | 1mm |
| da min | 25.6mm |
| Da max | 41.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 12 |
