SKU: 6204-2Z/C4-MB

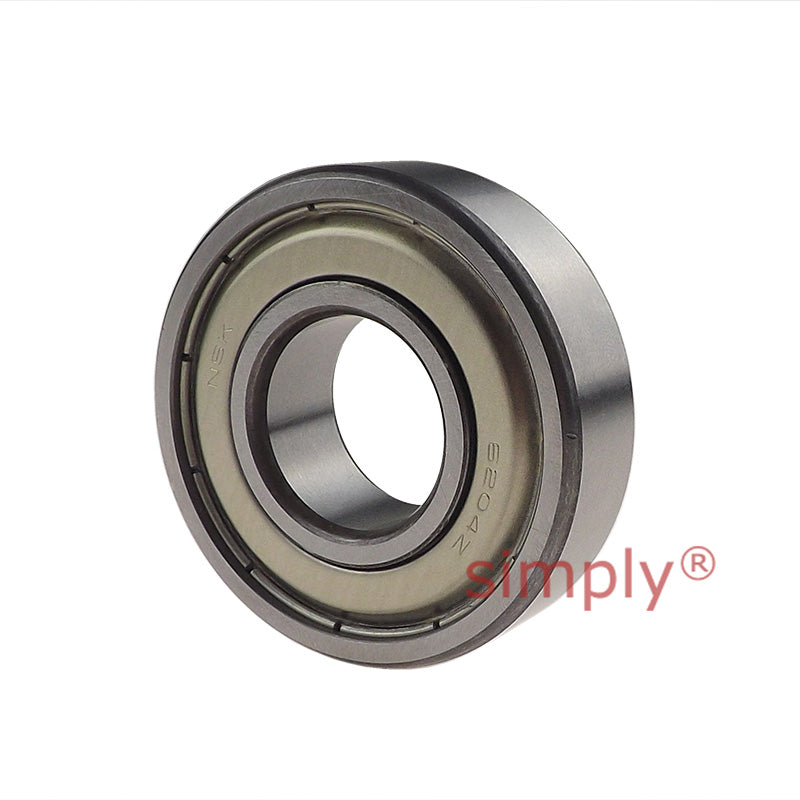

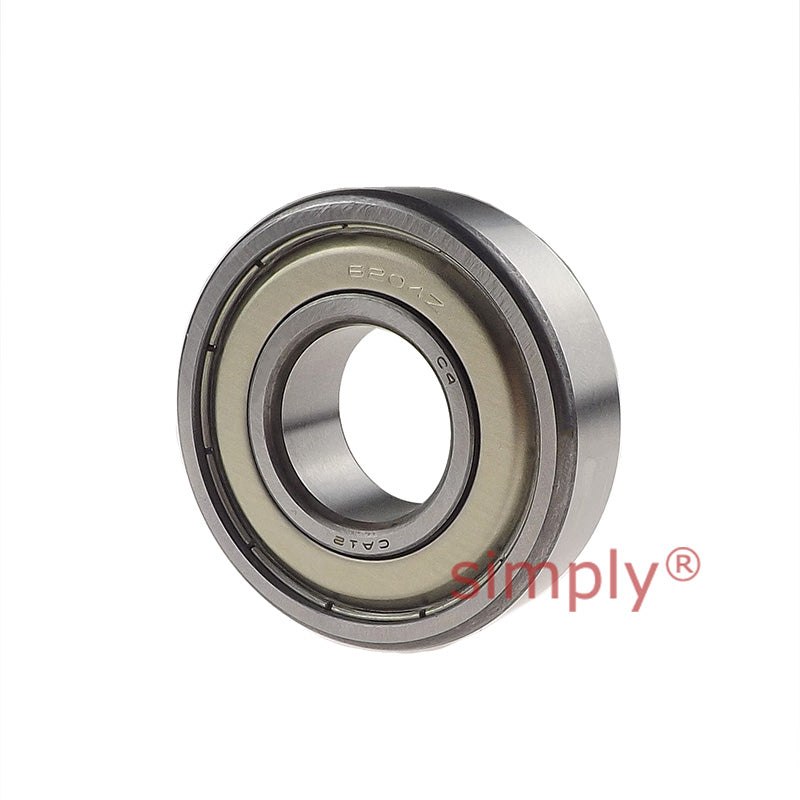

Major Brand 62042ZC4 Metal Shielded Deep Groove Ball Bearing 20x47x14mm
Major Brand 62042ZC4 Metal Shielded Deep Groove Ball Bearing 20x47x14mm
Regular price
€10,28
ex VAT
Regular price
Sale price
€10,28
ex VAT
Equivalent to: 6204ZZEC4 6204ZZC4 6204.2ZC4 6204KDDC4 6204DDC4 62042ZRC4 6204FFC4
In stock
Price Break
10+
€7,83
19+
€7,39
29+
€7,31
39+
€7,22
49+
€7,13
74+
€7,04
99+
€6,60
199+
€6,51
249+
€6,43
499+
€6,34
999+
€6,16
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6204ZZEC4 6204ZZC4 6204.2ZC4 6204KDDC4 6204DDC4 62042ZRC4 6204FFC4
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C4
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load C | 13.5 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.28 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 17000 rpm |
| Mass | 0.11 kg |
| d1 | 28.8mm |
| D2 | 40.6mm |
| r1r2 min | 1mm |
| da min | 25.6 |
