SKU: 6202NR-SKF

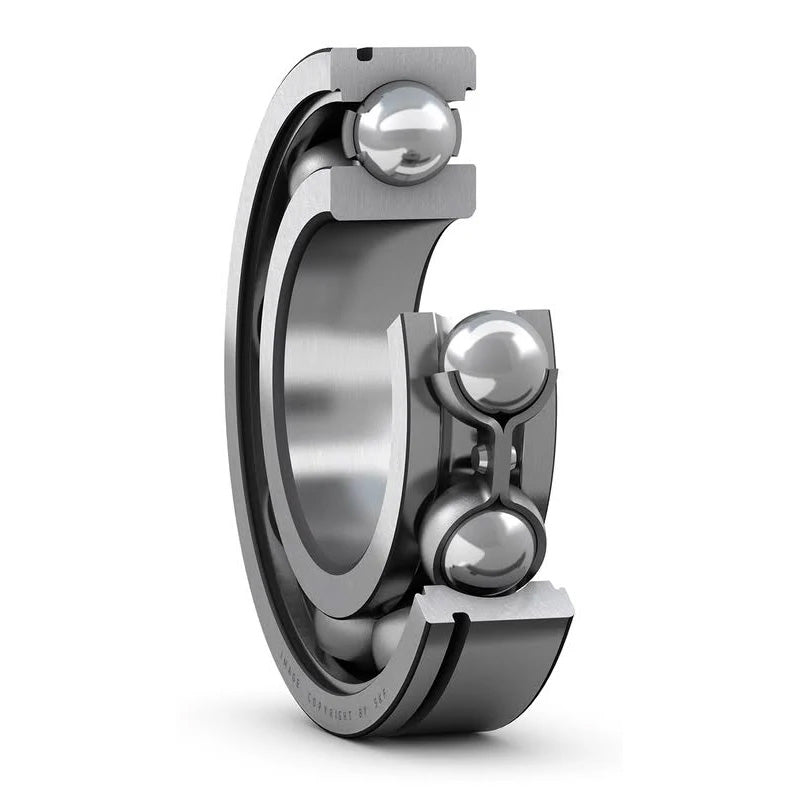

SKF 6202NR Open Type Snap Ring Deep Groove Bearing 15x35x11mm
SKF 6202NR Open Type Snap Ring Deep Groove Bearing 15x35x11mm
Regular price
€10,21
ex VAT
Regular price
Sale price
€10,21
ex VAT
In stock
Price Break
4+
€7,78
10+
€7,34
20+
€7,25
30+
€7,17
50+
€7,08
75+
€6,99
100+
€6,56
200+
€6,47
250+
€6,38
500+
€6,29
1000+
€6,12
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| Dynamic load C | 8.06 kN |
| Static load Co | 3.75 kN |
| Fatigue load limit Pu | 0.16 kN |
| Reference speed | 43000 rpm |
| Limiting speed | 28000 rpm |
| Weight | 0.045kg |
| Snap ring | SP 35 |
| d1 | 21.7mm |
| D2 | 30.4mm |
| D3 | 33.17mm |
| D4 | 39.7mm |
| b | 1.35mm |
| f | 1.12mm |
| C | 2.06mm |
| r1r2 min | 0.6mm |
| ro max | 0.4mm |
| da min | 19.2mm |
| Da max | 30.8mm |
| Db min | 41mm |
| ba min | 1.5mm |
| Ca max | 3.18mm |
| ra max | 0.6mm |
| Calc Factor kr | 0.025 |
| fo | 13 |
