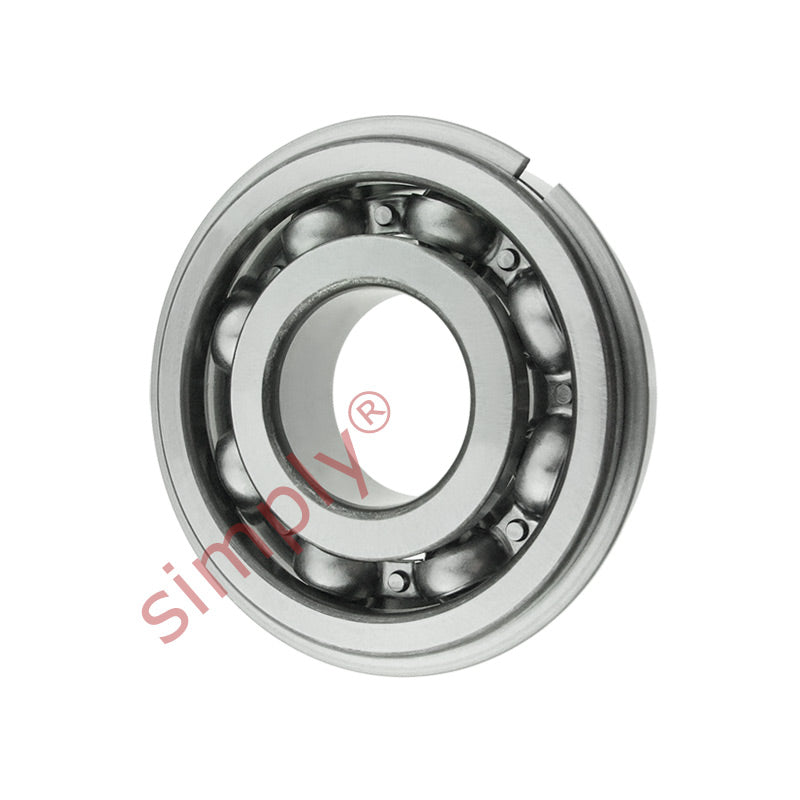

NSK 6201NR Open Type Deep Groove Ball Bearing With Snap Ring 12x32x10mm
NSK 6201NR Open Type Deep Groove Ball Bearing With Snap Ring 12x32x10mm
Regular price
€16,61
ex VAT
Regular price
Sale price
€16,61
ex VAT
In stock
Price Break
4+
€12,65
10+
€11,94
20+
€11,79
30+
€11,65
50+
€11,51
75+
€11,37
100+
€10,66
200+
€10,51
250+
€10,37
500+
€10,23
1000+
€9,95
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 12mm |
|---|---|
| D | 32mm |
| B | 10mm |
| r min | 0.6mm |
| Dynamic load Cr | 6800 N (695 kgf) |
| Static load Cor | 3050 N (310 kgf) |
| Factor | 12.3 |
| Speed in grease | 22000 rpm |
| Speed in oil | 28000 rpm |
| a max | 2.06mm |
| b min | 1.35mm |
| D1 max | 30.15mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 36.7mm |
| f max | 1.12mm |
| da2 min | 16mm |
| da2max | 17mm |
| Da2max | 28mm |
| ra max | 0.6mm |
| Dx min | 37.5mm |
| Cy max | 2.9mm |
| Weight | 0.037 kg |
