SKU: 62/22NR-NTN

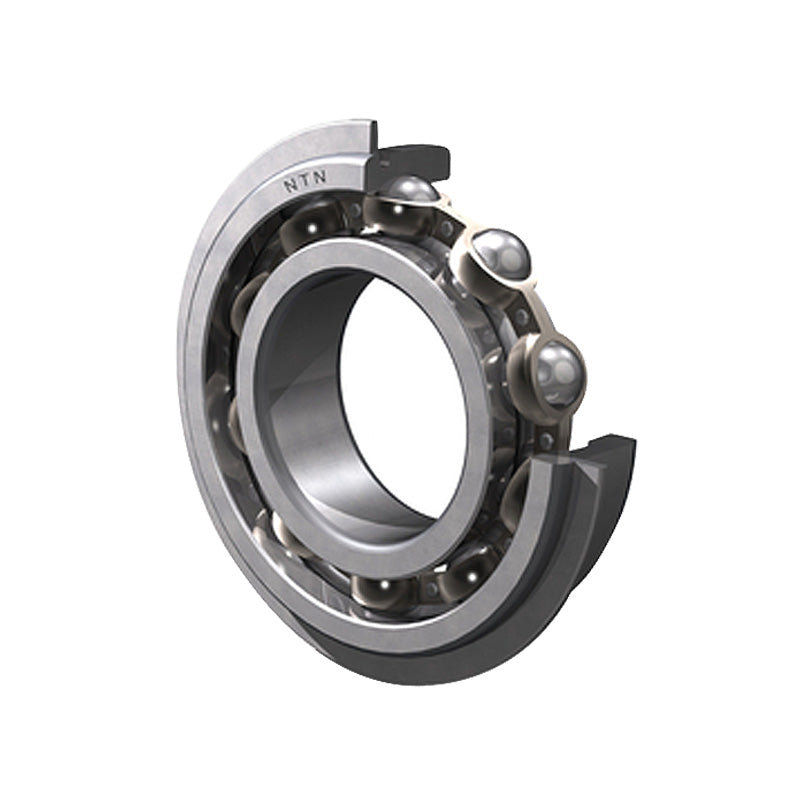

NTN 62/22NR Open Type Deep Groove Ball Bearing with Snap Ring 22x50x14mm
NTN 62/22NR Open Type Deep Groove Ball Bearing with Snap Ring 22x50x14mm
Regular price
€14,02
ex VAT
Regular price
Sale price
€14,02
ex VAT
Equivalent to: 62/22NRCM 1A22NR
In stock
Price Break
10+
€12,48
19+
€11,78
29+
€11,64
39+
€11,50
49+
€11,36
74+
€11,22
99+
€10,52
199+
€10,37
249+
€10,23
499+
€10,09
999+
€9,81
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 62/22NRCM 1A22NR
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 50mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 22mm |
| D | 50mm |
| B | 14mm |
| r<sub>s</sub> min | 1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 14.3 kN |
| C<sub>or</sub> | 6.8 kN |
| C<sub>u</sub> | 0.5 kN |
| f<sub>0</sub> | 13.5 kN |
| Grease | 14000 rpm |
| Oil | 17000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 47.6mm |
| a Max. | 2.46mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
| D<sub>2</sub> Max. | 55.7mm |
| f Max. | 1.12mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 27mm |
| d<sub>a</sub> Max. | 29.5mm |
| D<sub>a</sub> Max. | 45mm |
| D<sub>X</sub> (approx) | 56.5mm |
| C<sub>Y</sub> Max. | 3.3mm |
| C<sub>Z</sub> Min. | 1.2mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.117 kg |
