SKU: 6044C3-NTN

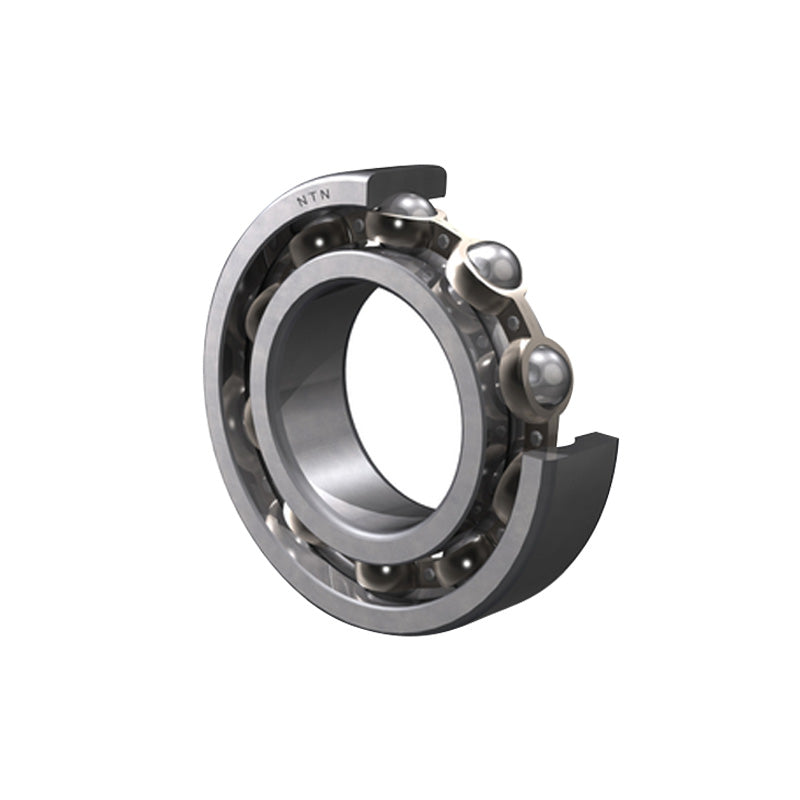

NTN 6044C3 Open Type Deep Groove Ball Bearing 220x340x56mm
NTN 6044C3 Open Type Deep Groove Ball Bearing 220x340x56mm
Regular price
€1.097,92
ex VAT
Regular price
Sale price
€1.097,92
ex VAT
Equivalent to: 9144KC3 9144C3 144KSC3 6144C3 3L44C3 EL220C3 ELL220C3
In stock
Price Break
3+
€836,17
5+
€789,20
10+
€779,80
25+
€770,41
49+
€761,01
74+
€751,62
99+
€704,64
199+
€695,24
249+
€685,85
499+
€676,45
999+
€657,66
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 9144KC3 9144C3 144KSC3 6144C3 3L44C3 EL220C3 ELL220C3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 220mm
- Outside Diameter:
- 340mm
- Width:
- 56mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 220mm |
| D | 340mm |
| B | 56mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 267 kN |
| C<sub>or</sub> | 289 kN |
| C<sub>u</sub> | 12.5 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 1800 rpm |
| Oil | 2200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 233mm |
| D<sub>a</sub> Max. | 327mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight | 15.7 kg |
