SKU: 6017-2RS-CDX

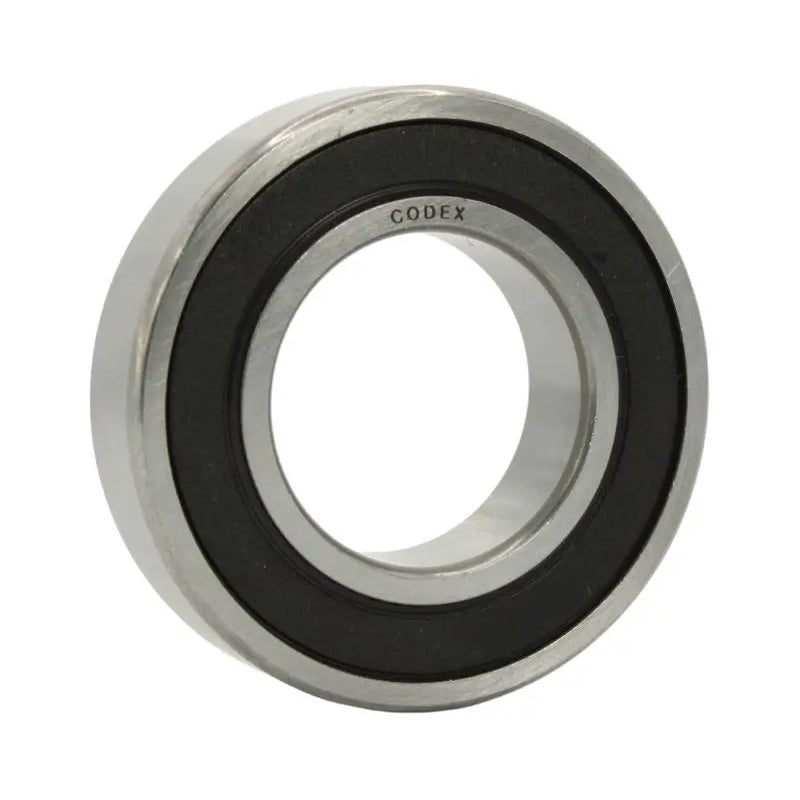

Codex 60172RS Rubber Sealed Deep Groove Ball Bearing 85x130x22mm
Codex 60172RS Rubber Sealed Deep Groove Ball Bearing 85x130x22mm
Regular price
€40,30
ex VAT
Regular price
Sale price
€40,30
ex VAT
Equivalent to: 60172RS 60172RSH 60172RS1 60172RSR 60172RSL 6017LFS 6017EE 6017DU 6017LLU EL852RS 6017PP
In stock
Price Break
4+
€30,69
10+
€28,97
20+
€28,62
30+
€28,28
50+
€27,93
75+
€27,59
100+
€25,86
200+
€25,52
250+
€25,17
500+
€24,83
1000+
€24,14
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 60172RS 60172RSH 60172RS1 60172RSR 60172RSL 6017LFS 6017EE 6017DU 6017LLU EL852RS 6017PP
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 130mm
- Width:
- 22mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 85mm |
|---|---|
| D | 130mm |
| B | 22mm |
| Dynamic load C | 52 kN |
| Static load Co | 43 kN |
| Fatigue load limit Pu | 1.76 |
| Reference speed | 11000 rpm |
| Limiting speed | 3000 rpm |
| Weight | 0.89 kg |
| d1 | 99.4mm |
| D2 | 119mm |
| r1r2 | 1.1mm |
| da min | 92mm |
| Da max | 123mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 16 |
