SKU: 6011-2RS1/C3-SKF

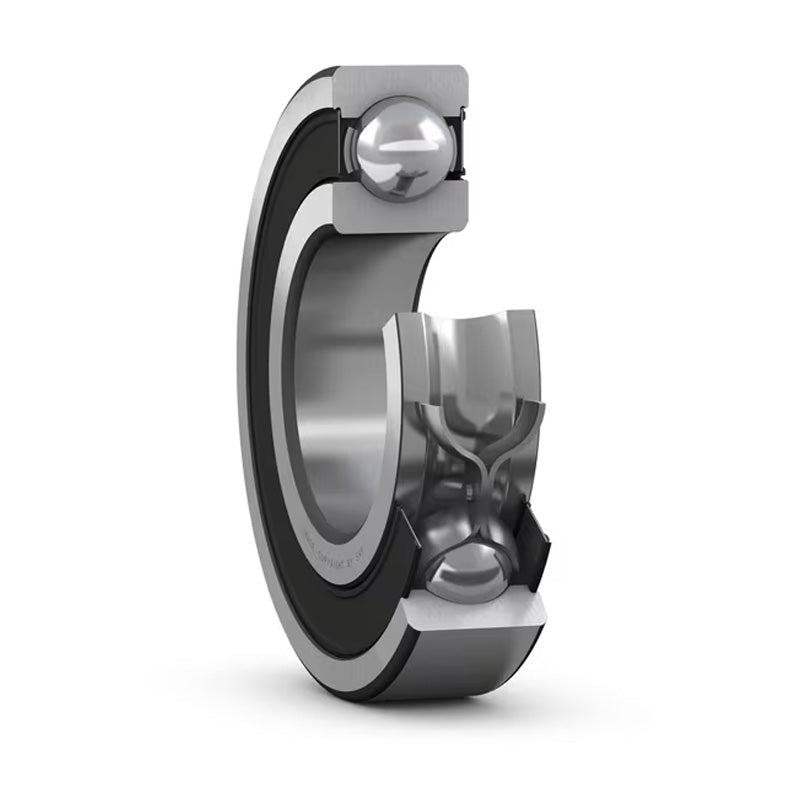

SKF 60112RS1C3 Rubber Sealed Deep Groove Ball Bearing 55x90x18mm
SKF 60112RS1C3 Rubber Sealed Deep Groove Ball Bearing 55x90x18mm
Regular price
€24,88
ex VAT
Regular price
Sale price
€24,88
ex VAT
Equivalent to: 6011NSEC3 6011DUC3 6011RSC3 6011RSHC3 6011PC3 6011RSRC3 6011LUC3 60112NSEC3 6011DDUC3 60112RSC3 60112RSHC3 6011PPC3 60112RSRC3 6011LLU
In stock
Price Break
4+
€18,95
10+
€17,88
20+
€17,67
30+
€17,46
50+
€17,24
75+
€17,03
100+
€15,97
200+
€15,75
250+
€15,54
500+
€15,33
1000+
€14,90
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6011NSEC3 6011DUC3 6011RSC3 6011RSHC3 6011PC3 6011RSRC3 6011LUC3 60112NSEC3 6011DDUC3 60112RSC3 60112RSHC3 6011PPC3 60112RSRC3 6011LLU
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 55mm |
|---|---|
| D | 90mm |
| B | 18mm |
| Dynamic load C | 29.6 kN |
| Static load Co | 21.2 kN |
| Fatigue load limit Pu | 0.9 kN |
| Reference speed | 16000 rpm |
| Limiting speed | 4500 rpm |
| Weight | 0.39 kg |
| d1 | 66.3mm |
| D2 | 81.5mm |
| r1r2 min | 1.1mm |
| da min | 61mm |
| Da max | 84mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 15 |
