SKU: 6009-CDX

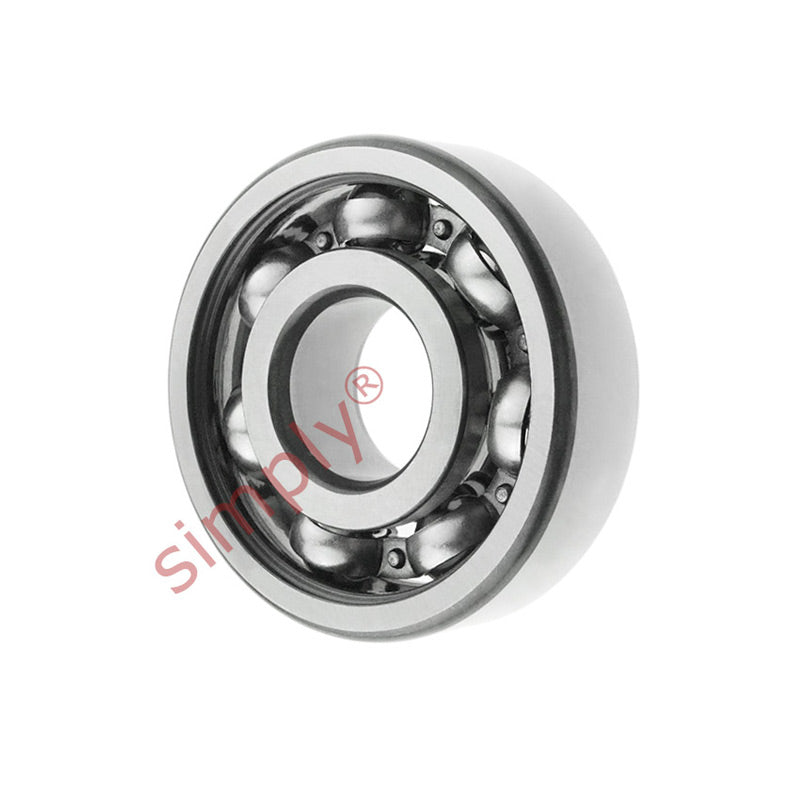

Codex 6009 Open Deep Groove Ball Bearing 45x75x16mm
Codex 6009 Open Deep Groove Ball Bearing 45x75x16mm
Regular price
€10,89
ex VAT
Regular price
Sale price
€10,89
ex VAT
Equivalent to: 6009 6109 9109 9109K ELL45 109KS 3L09 EL45
In stock
Price Break
4+
€8,30
10+
€7,83
20+
€7,74
30+
€7,64
50+
€7,55
75+
€7,46
100+
€6,99
200+
€6,90
250+
€6,81
500+
€6,71
1000+
€6,53
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 6009 6109 9109 9109K ELL45 109KS 3L09 EL45
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 75mm |
| B | 16mm |
| Dynamic Load | 22.1 kN |
| Static Load | 14.6 kN |
| Fatigue load limit Pu | 0.64 |
| Reference Speed | 20000 rpm |
| Limiting Speed | 12000 rpm |
| Weight | 0.25kg |
| d1 | 54.8mm |
| D1 | 65.3mm |
| D2 | 67.8mm |
| r1r2 min | 1mm |
| da min | 50.8mm |
| Da max | 69.2mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| Calc Factor Cor f0 | 15 |
