SKU: 6008NR-NSK

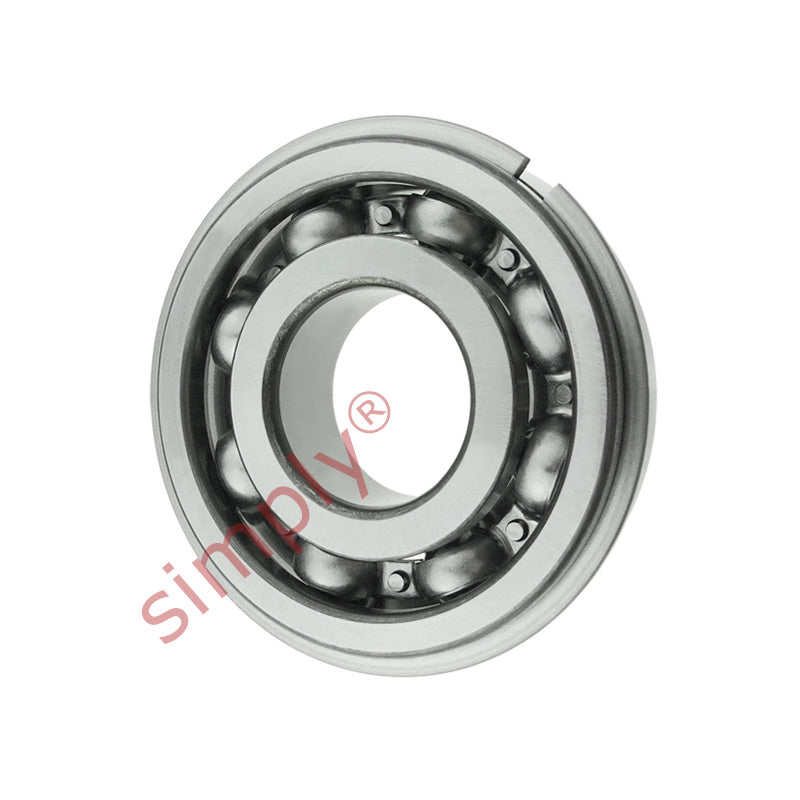

NSK 6008NR Open Type Deep Groove Ball Bearing With Snap Ring 40x68x15mm
NSK 6008NR Open Type Deep Groove Ball Bearing With Snap Ring 40x68x15mm
Regular price
€14,72
ex VAT
Regular price
Sale price
€14,72
ex VAT
In stock
Price Break
4+
€11,21
10+
€10,58
20+
€10,46
30+
€10,33
50+
€10,21
75+
€10,08
100+
€9,45
200+
€9,32
250+
€9,20
500+
€9,07
1000+
€8,82
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 40mm |
|---|---|
| D | 68mm |
| B | 15mm |
| r min | 1mm |
| Dynamic load Cr | 16800 N (1710 kgf) |
| Static load Cor | 11500 N (1180 kgf) |
| Factor | 15.3 |
| Speed in grease | 10000 rpm |
| Speed in oil | 12000 rpm |
| a max | 2.49mm |
| b min | 1.9mm |
| D1 max | 64.82mm |
| ro max | 0.6mm |
| rN min | 0.5mm |
| D2 max | 74.6mm |
| f max | 1.7mm |
| da2 min | 45mm |
| da2max | 47.5mm |
| Da2max | 63mm |
| ra max | 1mm |
| Dx min | 76mm |
| Cy max | 3.8mm |
| Weight | 0.19 kg |
