SKU: 6004ZC3-NTN

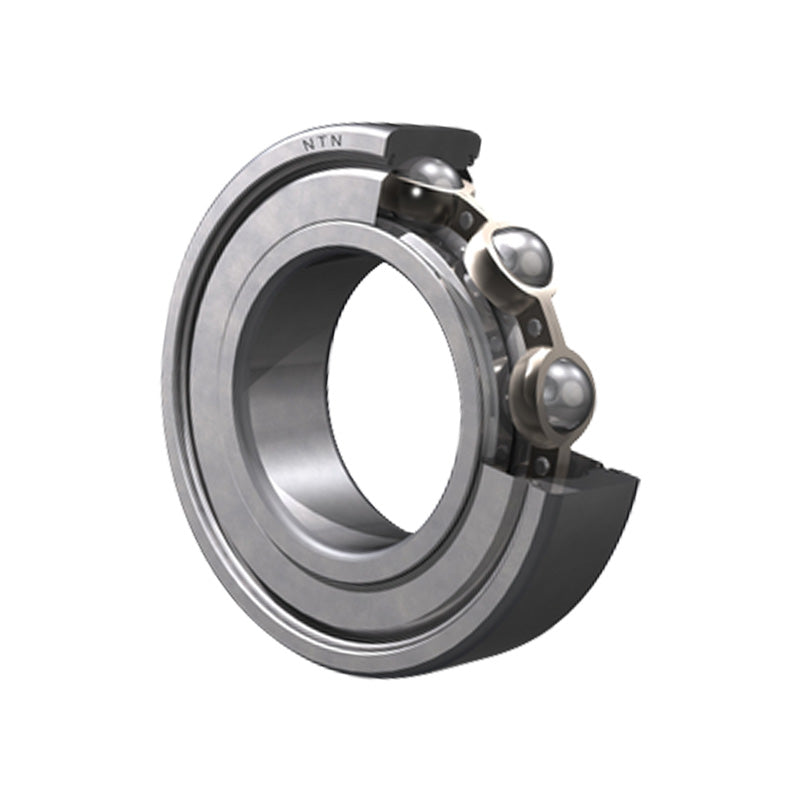

NTN 6004ZC3 One Metal Shield Type Deep Groove Ball Bearing 20x42x12mm - Allow 2-3 Days

NTN 6004ZC3 One Metal Shield Type Deep Groove Ball Bearing 20x42x12mm - Allow 2-3 Days
Regular price €5,61 ex VAT
Regular price Sale price €5,61 ex VAT
Sale Sold out

In stock

Price Break
3+ €4,75
5+ €4,56
10+ €4,46
25+ €4,32
49+ €4,22
74+ €3,98
99+ €3,36
199+ €0,00
249+ €0,00
499+ €0,00
999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 20mm
D 42mm
B 12mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 10.4 Kn
C<sub>or</sub> 5.05 kN
C<sub>u</sub> 0.355 kN
f<sub>0</sub> 13.9 kN
Grease 18000 rpm
Oil 21000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 24mm
D<sub>a</sub> Max. 26mm
r<sub>as</sub> Max. 38mm
Weight 0.6 kg
