Renold SD 60-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Renold SD 60-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Regular price
€17,98
ex VAT
Regular price
Sale price
€17,98
ex VAT
In stock
Price Break
10+
€16,00
19+
€15,10
29+
€14,92
39+
€14,74
49+
€14,56
74+
€14,38
99+
€13,49
199+
€13,31
249+
€13,13
499+
€12,95
999+
€12,59
Couldn't load pickup availability
Description
Description

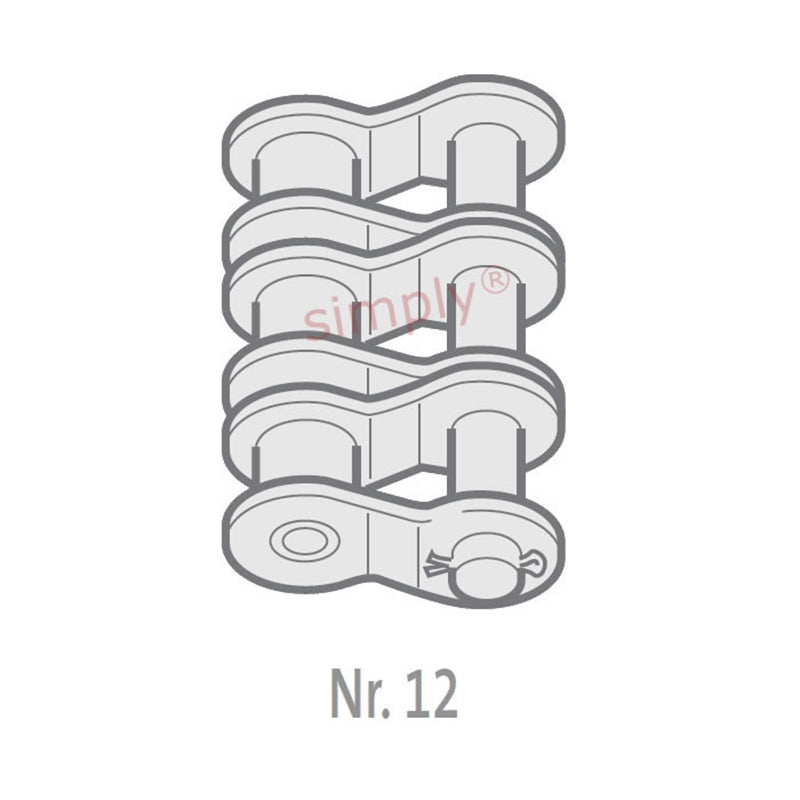

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 18mm |
| Plate Width Inner max (E) | 2.4mm |
| Plate Width Outer max (F) | 2.4mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H1) | 71.3mm |
| Connecting Link Extension max (J) | 4.8mm |
| ISO606 Tensile Strength min | 93900 N |
| Weight | 22.78kg/m |
