SKU: 60-3-BB-NO11-RENOLD
Renold Blue Box 60-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 3/4 inch Pitch
Renold Blue Box 60-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 3/4 inch Pitch
Regular price
€18,31
ex VAT
Regular price
Sale price
€18,31
ex VAT
In stock
Price Break
2+
€13,94
5+
€13,16
10+
€13,00
29+
€12,85
49+
€12,69
75+
€12,53
100+
€11,75
200+
€11,59
250+
€11,44
500+
€11,28
1000+
€10,97
Description
Description

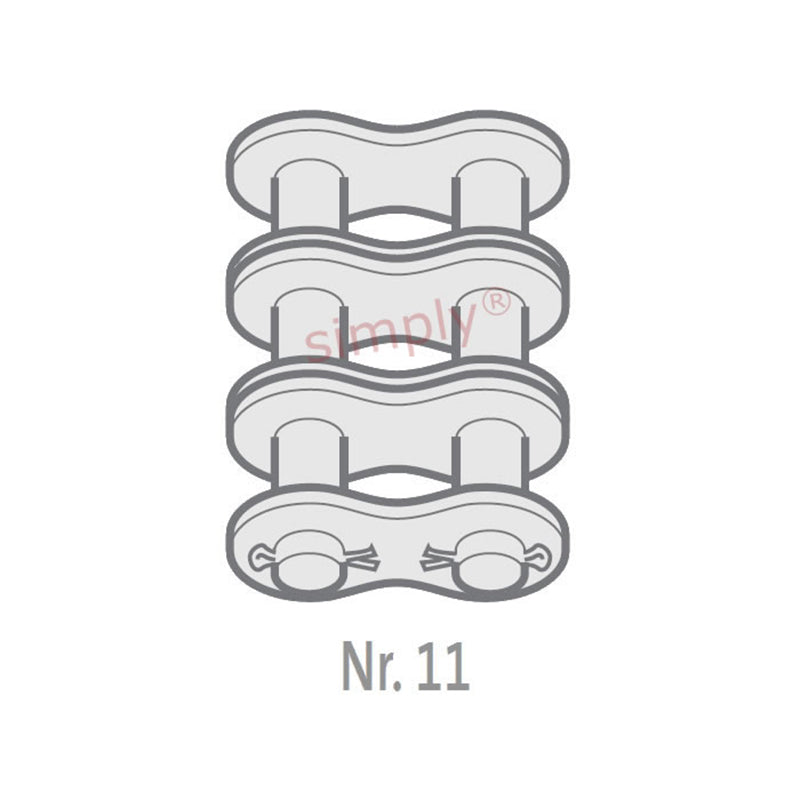

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 70.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 22.78mm |
| ISO606 Tensile Strength min | 93900 N |
| Weight | 1.51kg/m |
