SKU: 60-1-SYN-NO30-RENOLD
Renold Synergy 60-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/4 inch Pitch
Renold Synergy 60-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/4 inch Pitch
Regular price
€29,33
ex VAT
Regular price
Sale price
€29,33
ex VAT
In stock
Price Break
10+
€26,10
19+
€24,64
29+
€24,34
39+
€24,05
49+
€23,76
74+
€23,46
99+
€22,00
199+
€21,70
249+
€21,41
499+
€21,12
999+
€20,53
Couldn't load pickup availability
Description
Description

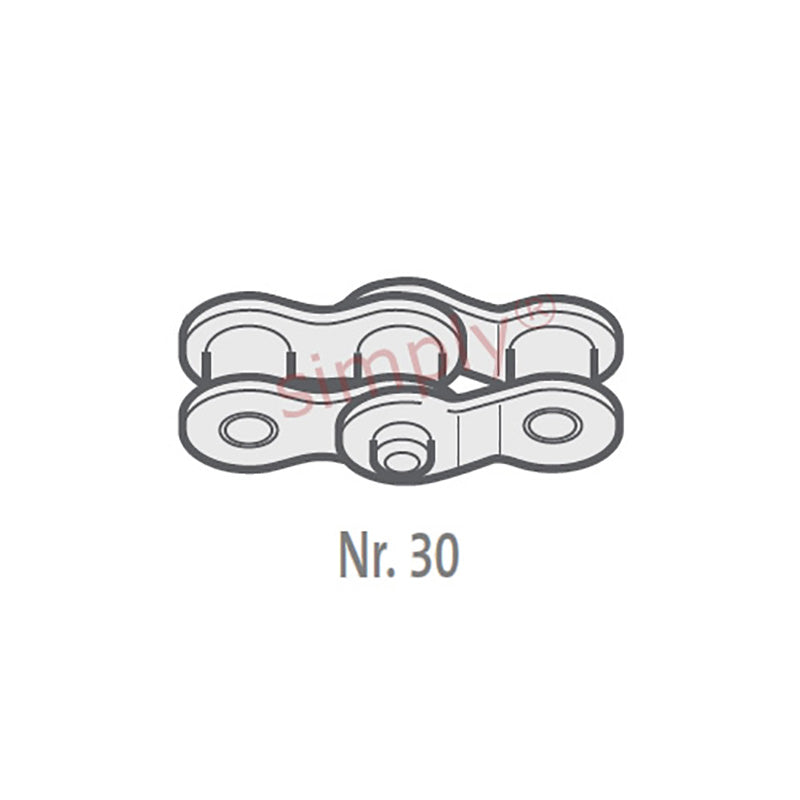

| Renold No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H1) | 25.3mm |
| Connecting Link Extension max (J) | 2.6mm |
| ISO606 Tensile Strength min | 31300 N |
| Weight | 1.5kg/m |
