SKU: 60-1-BB-NO26-RENOLD

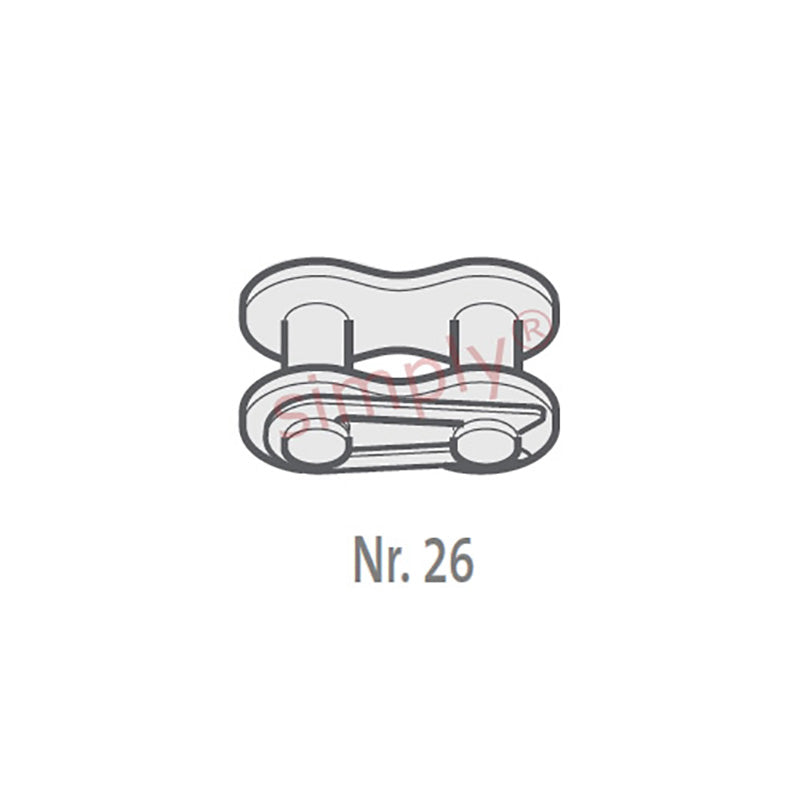

Renold Blue Box 60-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Renold Blue Box 60-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
€7,75
ex VAT
Regular price
Sale price
€7,75
ex VAT
In stock
Price Break
2+
€5,90
5+
€5,57
10+
€5,50
29+
€5,44
49+
€5,37
75+
€5,30
100+
€4,97
200+
€4,91
250+
€4,84
500+
€4,77
1000+
€4,64
Description
Description
| Renold No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 25.3mm |
| Connecting Link Extension max (J) | 2.6mm |
| ISO606 Tensile Strength min | 31300 N |
| Weight | 1.5kg/m |
