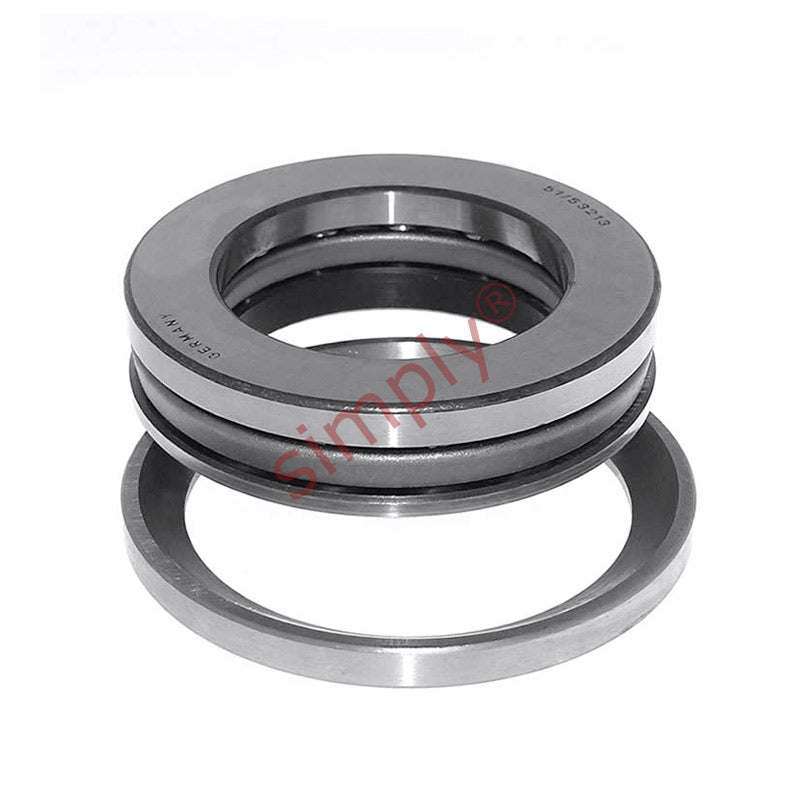

SKF 53207 Single Thrust Ball Bearing with Spherical Housing Seat U207 35x62x22mm
SKF 53207 Single Thrust Ball Bearing with Spherical Housing Seat U207 35x62x22mm
Regular price
€101,15
ex VAT
Regular price
Sale price
€101,15
ex VAT
In stock
Price Break
10+
€77,04
19+
€72,71
29+
€71,84
39+
€70,98
49+
€70,11
74+
€69,25
99+
€64,92
199+
€64,05
249+
€63,19
499+
€62,32
999+
€60,59
Share this product
Description
Description
|
SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 22mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 62mm |
| H1 | 22mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 73.5 kN |
| Fatigue load limit Pu | 2.7 kN |
| Minimum load factor A | 0.028 |
| Reference speed | 4000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 0.28 kg |
| Seating washer | U207 |
| d1 | 62mm |
| D1 | 37mm |
| D2 | 48mm |
| D3 | 65mm |
| H | 19.87mm |
| C | 7mm |
| R | 50mm |
| s | 24mm |
| r1r2 min | 1mm |
| da max | 51mm |
| Da max | 48mm |
| ra max | 1mm |
