SKU: 5302-2RS-EU

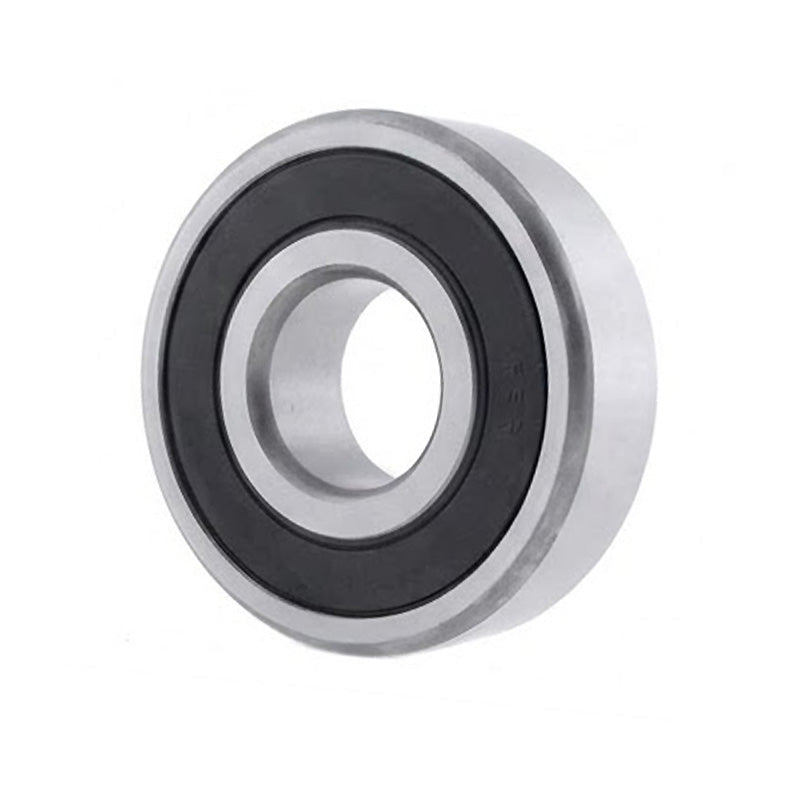

Budget 53022RS Rubber Sealed Double Row Angular Contact Ball Bearing 15x42x19mm
Budget 53022RS Rubber Sealed Double Row Angular Contact Ball Bearing 15x42x19mm
Regular price
€14,77
ex VAT
Regular price
Sale price
€14,77
ex VAT
Low stock
Price Break
10+
€11,25
19+
€10,62
29+
€10,49
39+
€10,36
49+
€10,24
74+
€10,11
99+
€9,48
199+
€9,35
249+
€9,23
499+
€9,10
999+
€8,85
Share this product
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 15mm |
| D | 42mm |
| B | 19mm |
| --- | Abutment Dimensions |
| a | 26mm |
| r1r2 min | 1mm |
| r1r2 max | 1mm |
| Da min | 21mm |
| da max | 36mm |
| --- | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | 17200 N |
| Basic Static Load Raiting Cor | 10100 N |
| Limiting Speed in Grease | 9900 rpm |
| Limiting Speed in Oil | 13000 rpm |
| Weight | 0.132 kg |
