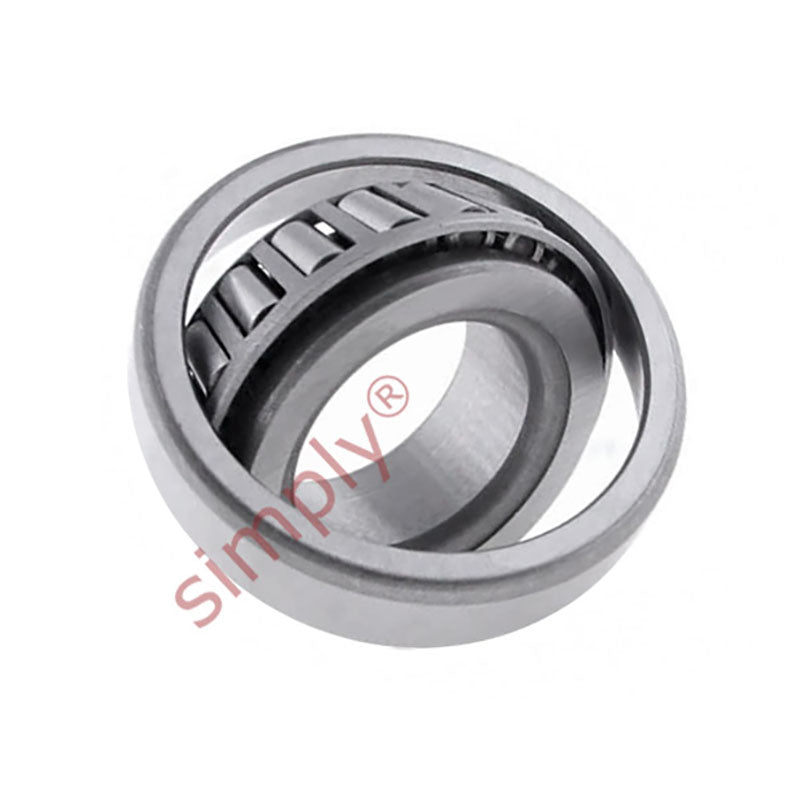

• SKF 526/522/Q Imperial Taper Roller Bearing 1.625x4x1.375 inches
1 1

SKU: 526/522/Q-SKF

SKF 526/522/Q Imperial Taper Roller Bearing 1.625x4x1.375 inches

SKF 526/522/Q Imperial Taper Roller Bearing 1.625x4x1.375 inches
€135,65 ex VAT
€135,65 ex VAT
Sale Sold out

In stock

Price Break
10+ €103,31
19+ €97,51
29+ €96,35
39+ €95,19
49+ €94,03
74+ €92,87
99+ €87,06
199+ €85,90
249+ €84,74
499+ €83,58
999+ €81,26
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
41.28mm = 1.625 (1-5/8) inch
Outside Diameter:
101.6mm = 4 inch
Width:
34.93mm = 1.375 (1-3/8) inch
Seals / Shields:
None
Technical
d 41.275mm
D 101.6mm
T 34.925mm
Dynamic load 151 kN
Static load 190 kN
Fatigue load limit Pu 22.8 kN
Reference speed 5000 rpm
Limiting speed 7500 rpm
Weight 1.45 kg
d1 72.9mm
B 36.068mm
C 26.988mm
r1r2 min 3.5mm
r3r4 min 3.3mm
a 22mm
da max 61mm
db min 52.5mm
Da min 87mm
Da max 90.5mm
Db min 94mm
Ca min 6mm
Cb min 7.5mm
ra max 3mm
rb max 3mm
Calculation factor e 0.28
Calculation factor Y 2.1
Calculation factor Y0 1.1
