SKU: 52210-SKF

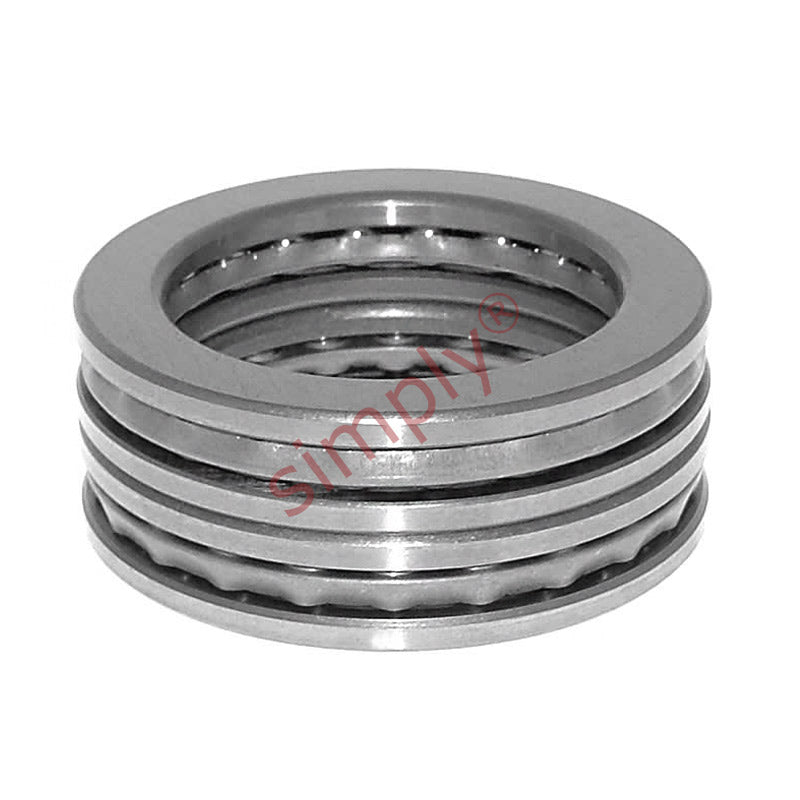

SKF 52210 Double Thrust Ball Bearing with Flat Seats 40x78x39mm
SKF 52210 Double Thrust Ball Bearing with Flat Seats 40x78x39mm
Regular price
€100,14
ex VAT
Regular price
Sale price
€100,14
ex VAT
In stock
Price Break
10+
€76,26
19+
€71,98
29+
€71,12
39+
€70,26
49+
€69,41
74+
€68,55
99+
€64,27
199+
€63,41
249+
€62,55
499+
€61,69
999+
€59,98
Share this product
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 78mm
- Width:
- 39mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 78mm |
| H | 39mm |
| Dynamic load C | 49.4 kN |
| Static load Co | 116 kN |
| Fatigue load limit Pu | 4.3 kN |
| Minimum load factor A | 0.069 |
| Reference speed | 3400 rpm |
| Limiting speed | 4500 rpm |
| Weight | 0.71 kg |
| D1 | 52mm |
| B | 9mm |
| r1r2 | 1mm |
| r3r4 | 0.6mm |
| da | 50mm |
| Da max | 61mm |
| ra max | 1mm |
| rb max | 0.6mm |
