Renold SD 50-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Renold SD 50-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Regular price
€9,10
ex VAT
Regular price
Sale price
€9,10
ex VAT
In stock
Price Break
10+
€8,10
19+
€7,64
29+
€7,55
39+
€7,46
49+
€7,37
74+
€7,28
99+
€6,83
199+
€6,73
249+
€6,64
499+
€6,55
999+
€6,37
Couldn't load pickup availability
Description
Description

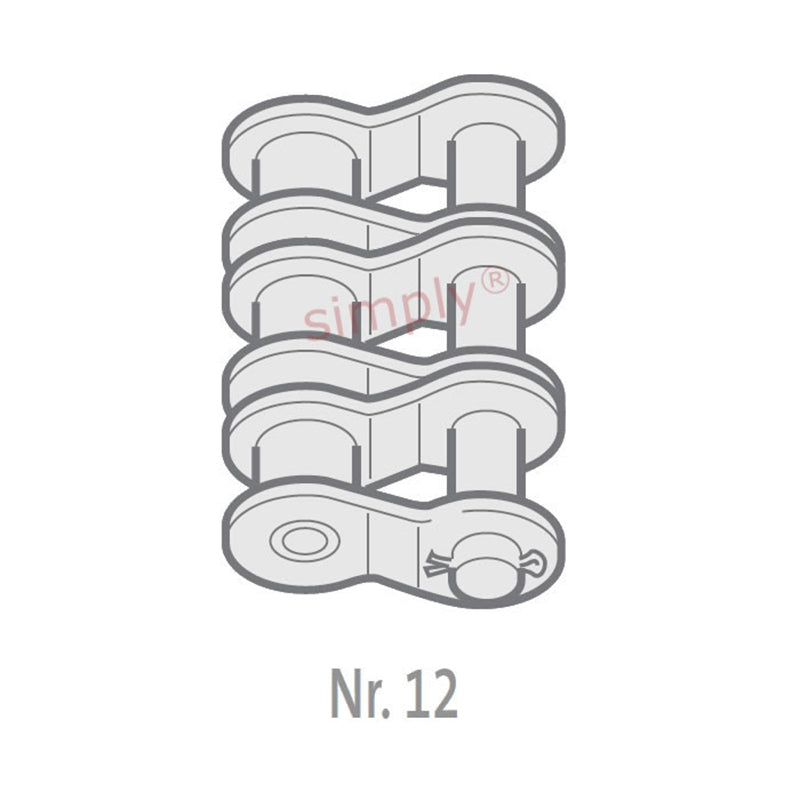

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 15.09mm |
| Plate Width Inner max (E) | 2mm |
| Plate Width Outer max (F) | 2mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 57.5mm |
| Connecting Link Extension max (J) | 3.9mm |
| ISO606 Tensile Strength min | 65400 N |
| Weight | 18.11kg/m |
