SKU: 50-3-NO12-MB
Branded 50-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Branded 50-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Regular price
€7,71
ex VAT
Regular price
Sale price
€7,71
ex VAT
Equivalent to: 50-3-OL
In stock
Price Break
2+
€5,88
5+
€5,55
10+
€5,48
29+
€5,41
49+
€5,35
75+
€5,28
100+
€4,95
200+
€4,89
250+
€4,82
500+
€4,75
1000+
€4,62
Description
Description

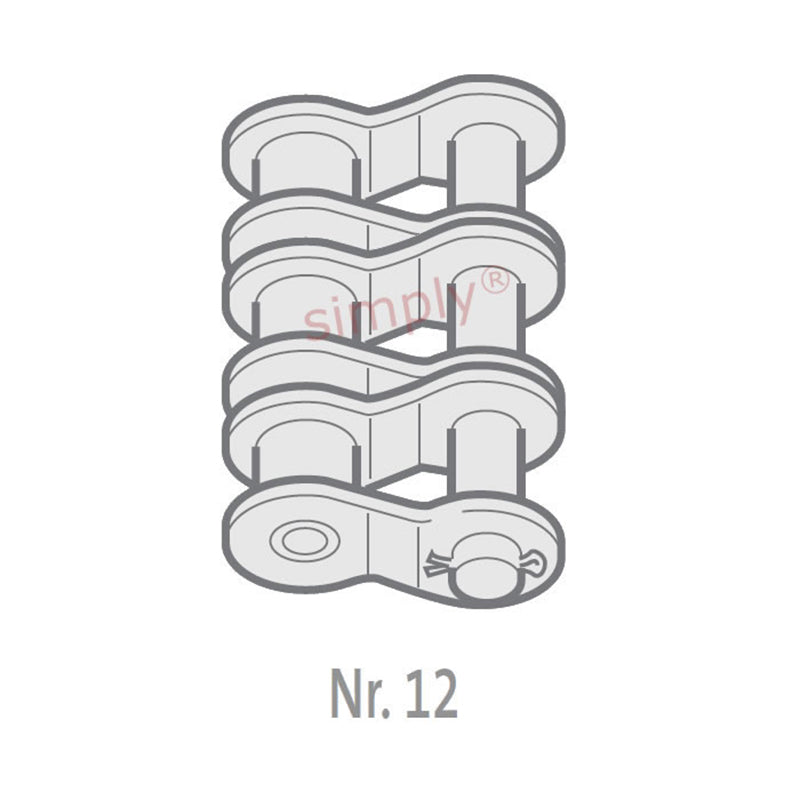

Branded OL / No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 50-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 15.09mm |
| Plate Width Inner max (E) | 2mm |
| Plate Width Outer max (F) | 2mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 57.5mm |
| Connecting Link Extension max (J) | 3.9mm |
| ISO606 Tensile Strength min | 65400 N |
| Weight | 18.11kg/m |
