SKU: 4T-T2ED050-NTN

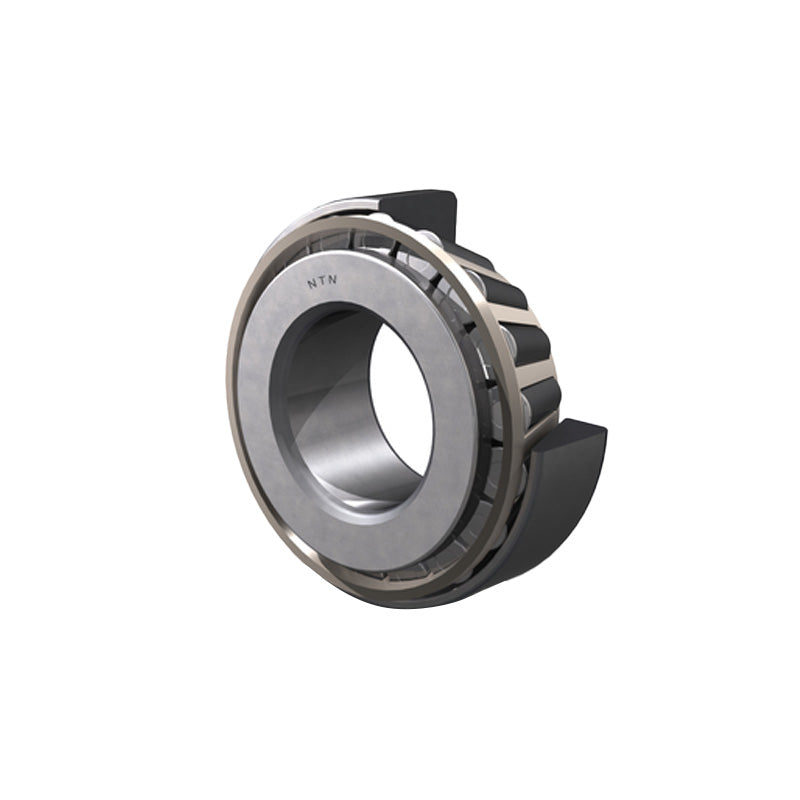

NTN 4T-T2ED050 Tapered Roller Bearing Cup and Cone Set 50x100x36mm - Allow 2-3 Days

NTN 4T-T2ED050 Tapered Roller Bearing Cup and Cone Set 50x100x36mm - Allow 2-3 Days
Regular price €129,56 ex VAT
Regular price Sale price €129,56 ex VAT
Sale Sold out

In stock

Price Break
3+ €109,76
5+ €105,33
10+ €103,11
25+ €99,78
49+ €97,57
74+ €92,02
99+ €77,61
199+ €0,00
249+ €0,00
499+ €0,00
999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 50mm
D 100mm
T 36mm
B 35mm
C 30mm
r<sub>s</sub> min 2.5mm
r<sub>ls</sub> min 2.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 167kN
Static load C<sub>or</sub> 190kN
Allowable Speed in grease 3800rpm
Allowable Speed in oil 5100rpm
--- Abutment dimensions
ISO Dimension series 2ED
d<sub>a</sub> min 62mm
d<sub>b</sub> max 58mm
D<sub>a</sub> max 88mm
D<sub>a</sub> min 82mm
D<sub>b</sub> min 94.5mm
S<sub>a</sub> min 6mm
S<sub>b</sub> min 6mm
r<sub>as</sub> max 2mm
r<sub>1as</sub> max 2mm
Load center a 25.5mm
Constant e 0.34mm
Y<sub>2</sub> 1.75mm
Y<sub>0</sub> 0.96mm
Weight 1.3kg
