SKU: 4T-HM212049/HM212010-NTN

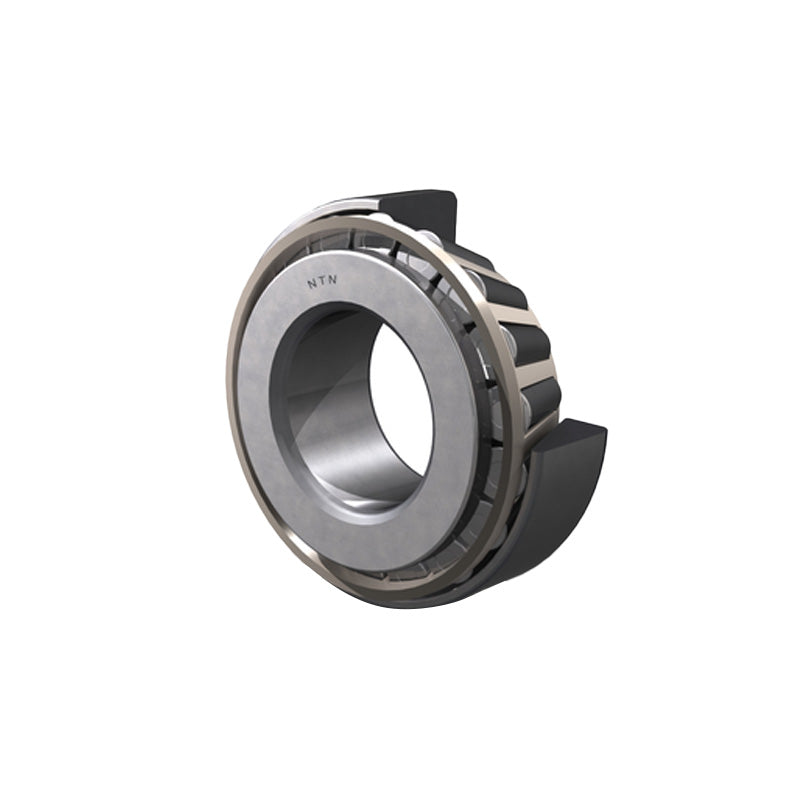

NTN 4T-HM212049/HM212010 Tapered Roller Bearing Cup and Cone Set 2.625x4.813x1.5 inch

NTN 4T-HM212049/HM212010 Tapered Roller Bearing Cup and Cone Set 2.625x4.813x1.5 inch
Regular price €84,52 ex VAT
Regular price Sale price €84,52 ex VAT
Sale Sold out

In stock

Price Break
3+ €64,37
5+ €60,76
10+ €60,03
25+ €59,31
49+ €58,59
74+ €57,86
99+ €54,25
199+ €53,52
249+ €52,80
499+ €52,08
999+ €50,63
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 2.625 inch (66.675mm)
D (inch) 4.813 inch (122.238mm)
T 1.5 inch (38.1mm)
B 1.51 inch (38.354mm)
C 1.17 inch (29.718mm)
--- Speeds and loads
C<sub>r</sub> 208kN
C<sub>or</sub> 244kN
Speed in grease 3100rpm
Speed in oil 4100rpm
--- Abutment dimensions
d<sub>a</sub> 82mm
d<sub>b</sub> 75.5mm
D<sub>a</sub> 110mm
D<sub>b</sub> 116mm
r<sub>as</sub> max 3.5mm
r<sub>1as</sub> max 1.5mm
Load center<sup>2</sup> 11.1mm
Constant e 0.34
Axial load factor Y<sub>2</sub> 1.78
Axial load factor Y<sub>0</sub> 0.98
Weight 1.84kg
