SKU: 4T-33211-NTN

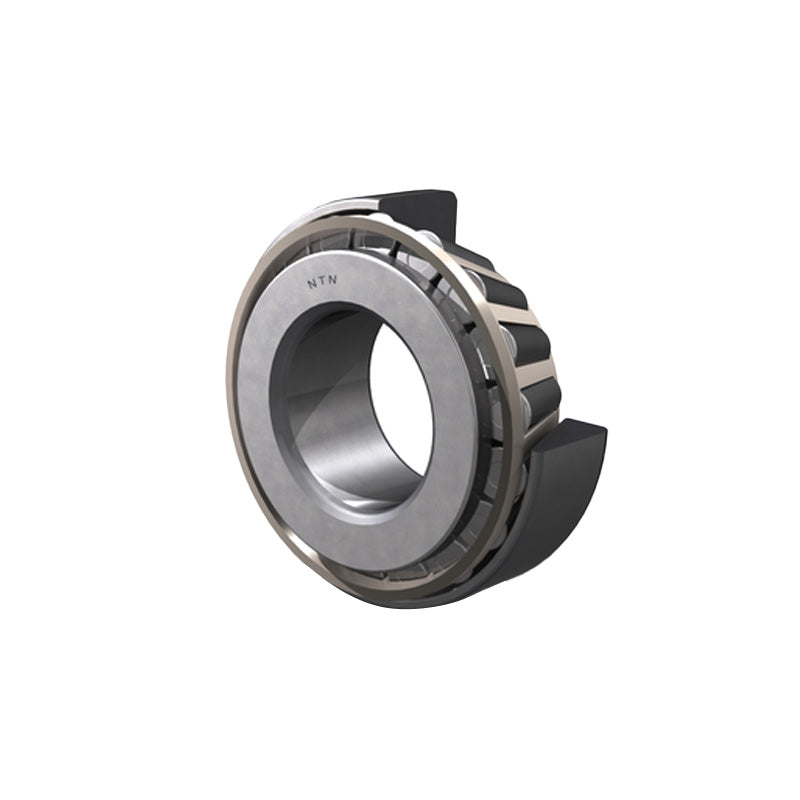

NTN 4T-33211 Tapered Roller Bearing Cup and Cone Set 55x100x35mm

NTN 4T-33211 Tapered Roller Bearing Cup and Cone Set 55x100x35mm
Regular price €58,08 ex VAT
Regular price Sale price €58,08 ex VAT
Sale Sold out

In stock

Price Break
3+ €44,23
5+ €41,75
10+ €41,25
25+ €40,75
49+ €40,26
74+ €39,76
99+ €37,28
199+ €36,78
249+ €36,28
499+ €35,78
999+ €34,79
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 55mm
D 100mm
T 35mm
B 35mm
C 27mm
r<sub>s</sub> min 2mm
r<sub>ls</sub> min 1.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 153kN
Static load C<sub>or</sub> 188kN
Allowable Speed in grease 3600rpm
Allowable Speed in oil 4900rpm
--- Abutment dimensions
ISO Dimension series 3DE
d<sub>a</sub> min 65mm
d<sub>b</sub> max 62.5mm
D<sub>a</sub> max 91.5mm
D<sub>a</sub> min 82mm
D<sub>b</sub> min 96.5mm
S<sub>a</sub> min 6mm
S<sub>b</sub> min 8mm
r<sub>as</sub> max 2mm
r<sub>1as</sub> max 1.5mm
Load center a 25.5mm
Constant e 0.4mm
Y<sub>2</sub> 1.5mm
Y<sub>0</sub> 0.83mm
Weight 1.17kg
