SKU: 4T-32312C-NTN

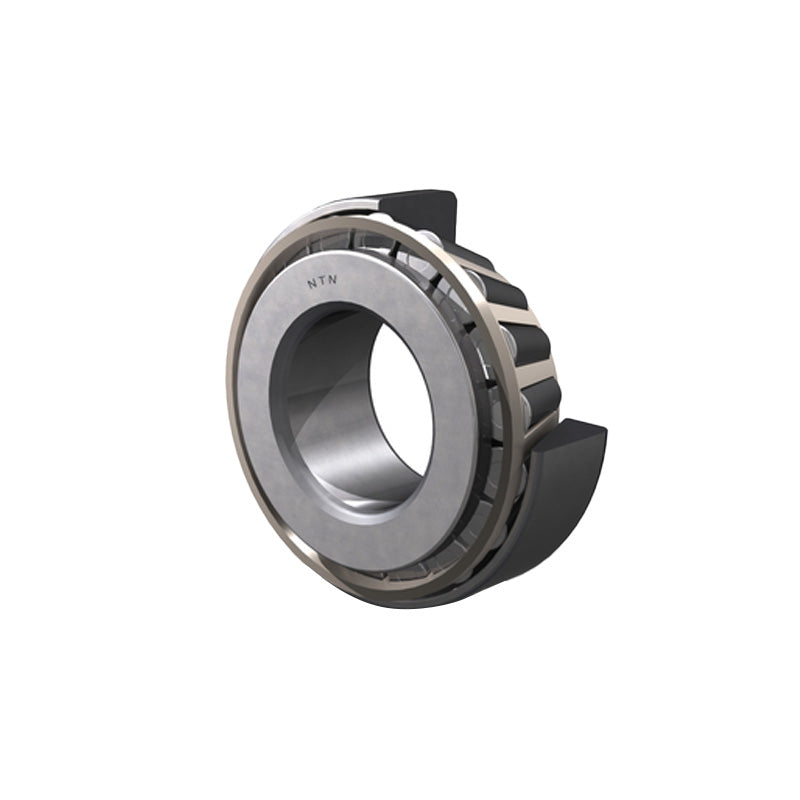

NTN 4T-32312C Tapered Roller Bearing Cup and Cone Set 60x130x48.5mm

NTN 4T-32312C Tapered Roller Bearing Cup and Cone Set 60x130x48.5mm
Regular price €116,32 ex VAT
Regular price Sale price €116,32 ex VAT
Sale Sold out

In stock

Price Break
3+ €88,59
5+ €83,61
10+ €82,62
25+ €81,62
49+ €80,63
74+ €79,63
99+ €74,66
199+ €73,66
249+ €72,66
499+ €71,67
999+ €69,68
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 60mm
D 130mm
T 48.5mm
B 46mm
C 37mm
r<sub>s</sub> min 3mm
r<sub>ls</sub> min 2.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 237kN
Static load C<sub>or</sub> 296kN
Allowable Speed in grease 2900rpm
Allowable Speed in oil 3900rpm
--- Abutment dimensions
ISO Dimension series 5FD
d<sub>a</sub> min 74mm
d<sub>b</sub> max 73mm
D<sub>a</sub> max 118mm
D<sub>a</sub> min 96.5mm
D<sub>b</sub> min 122mm
S<sub>a</sub> min 5mm
S<sub>b</sub> min 11mm
r<sub>as</sub> max 2.5mm
r<sub>1as</sub> max 2mm
Load center a 39mm
Constant e 0.55mm
Y<sub>2</sub> 1.1mm
Y<sub>0</sub> 0.6mm
Weight 3.07kg
