SKU: 4T-2878/2820-NTN

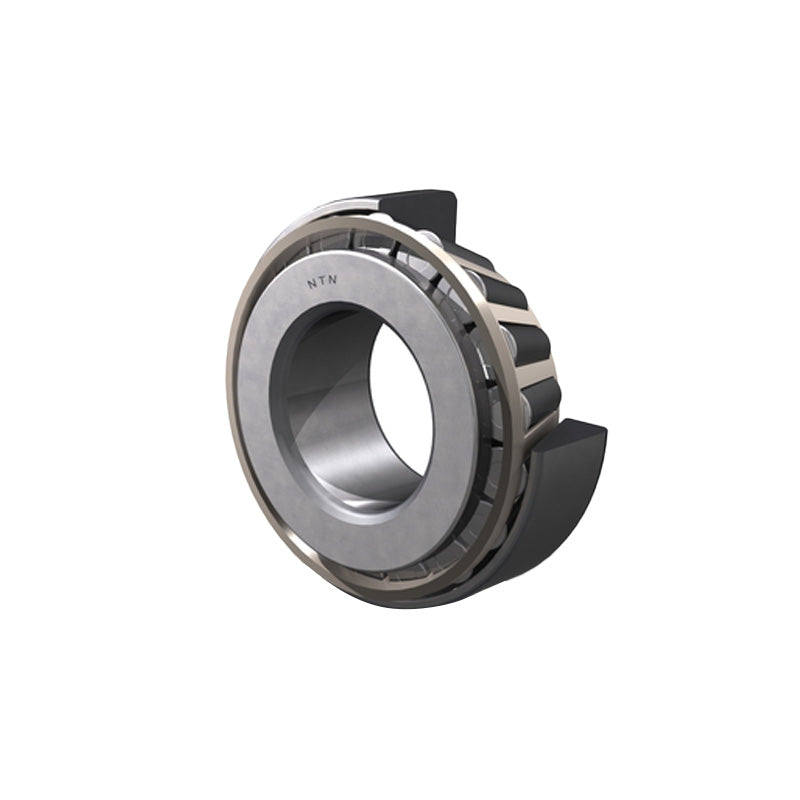

NTN 4T-2878/2820 Tapered Roller Bearing Cup and Cone Set 1.375x2.875x0.875 inch

NTN 4T-2878/2820 Tapered Roller Bearing Cup and Cone Set 1.375x2.875x0.875 inch
Regular price €53,60 ex VAT
Regular price Sale price €53,60 ex VAT
Sale Sold out

In stock

Price Break
3+ €40,82
5+ €38,53
10+ €38,07
25+ €37,61
49+ €37,15
74+ €36,70
99+ €34,40
199+ €33,94
249+ €33,49
499+ €33,03
999+ €32,11
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 1.375 inch (34.925mm)
D (inch) 2.875 inch (73.025mm)
T 0.875 inch (22.225mm)
B 0.937 inch (23.812mm)
C 0.69 inch (17.462mm)
--- Speeds and loads
C<sub>r</sub> 69.5kN
C<sub>or</sub> 75.5kN
Speed in grease 5200rpm
Speed in oil 7000rpm
--- Abutment dimensions
d<sub>a</sub> 42mm
d<sub>b</sub> 41mm
D<sub>a</sub> 63mm
D<sub>b</sub> 68mm
r<sub>as</sub> max 0.8mm
r<sub>1as</sub> max 3.3mm
Load center<sup>2</sup> 5.5mm
Constant e 0.37
Axial load factor Y<sub>2</sub> 1.63
Axial load factor Y<sub>0</sub> 0.9
Weight 0.435kg
