SKU: 475/472B-TIM

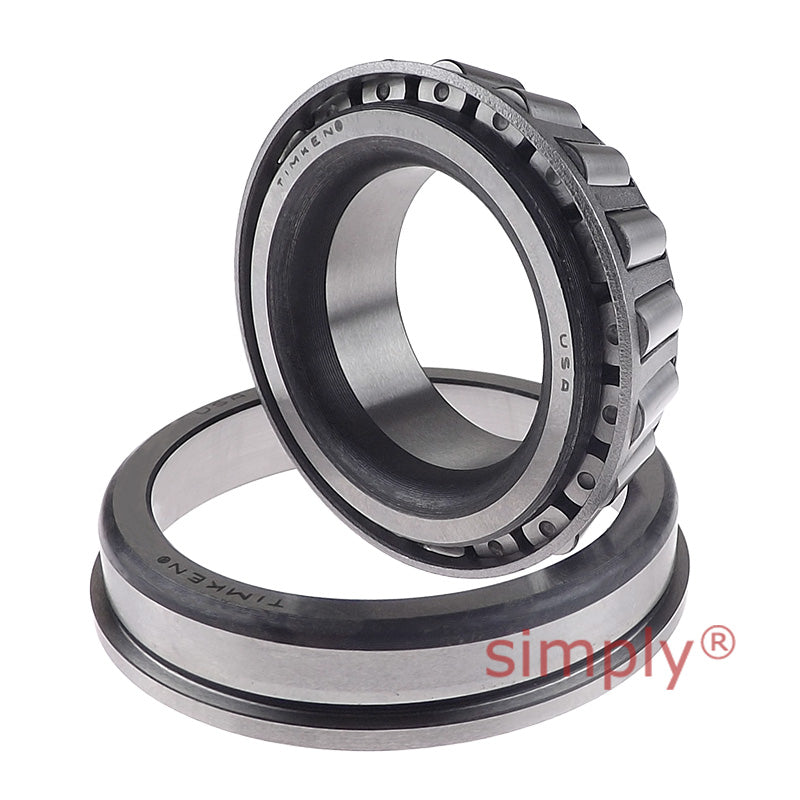

Timken 475/472B TSF Single-Row Taper Roller Bearing 2.1654x4.7244x1.173 inch
Timken 475/472B TSF Single-Row Taper Roller Bearing 2.1654x4.7244x1.173 inch
Regular price
€244,11
ex VAT
Regular price
Sale price
€244,11
ex VAT
In stock
Price Break
10+
€185,91
20+
€175,47
30+
€173,38
40+
€171,29
50+
€169,20
75+
€167,11
100+
€156,67
200+
€154,58
250+
€152,49
500+
€150,40
1000+
€146,22
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 55.001mm = 2.165 inch
- Outside Diameter:
- 120mm = 4.724 inch
- Width:
- 29.79mm = 1.173 inch
Technical
Technical
| d | 55mm = 2.1654 inch |
|---|---|
| D | 120mm = 4.7244 inch |
| T1 | 11.095mm = 0.4368 inch |
| Dynamic (1) C1 | 133000N |
| Factors (5) e | 0.38 |
| Factors (5) Y | 1.56 |
| Dynamic (2) C90 | 34400N |
| Dynamic (2) Ca90 | 22700N |
| Factors (5) K | 1.52 |
| Static Co | 186000N |
| Bearing B | 29.007mm = 1.142 inch |
| Bearing C | 24.237mm = 0.9542 inch |
| Bearing a(3) | -4.1mm = -0.16 inch |
| Bearing D1 | 125.435mm = 4.9384 inch |
| Bearing C2 | 5.537mm = 0.218 inch |
| Shaft max shaft fillet radius R(4) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 66mm = 2.6 inch |
| Shaft backing shoulder diameter db | 67mm = 2.64 inch |
| Housing backing shoulder diameter Da | 115mm = 4.53 inch |
| G1 | 77.2 |
| G2 | 23 |
| Cg | 0.1083 |
