• SKF 42687/42620 Imperial Taper Roller Bearing 3x5x1.1875 inches
1 1

SKU: 42687/42620-SKF

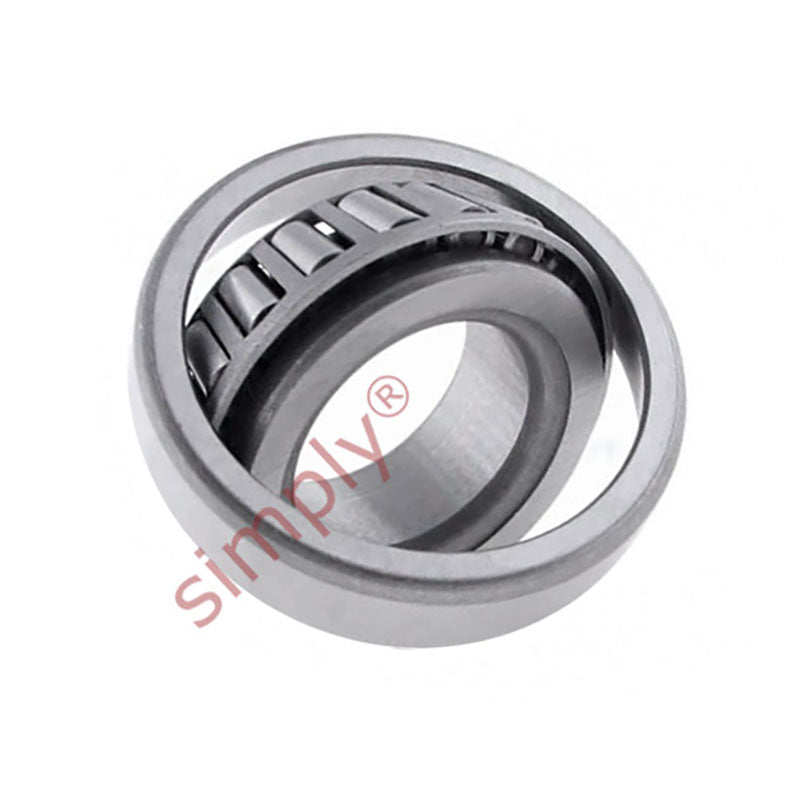

SKF 42687/42620 Imperial Taper Roller Bearing 3x5x1.1875 inches

SKF 42687/42620 Imperial Taper Roller Bearing 3x5x1.1875 inches
€133,15 ex VAT
€133,15 ex VAT
Sale Sold out

In stock

Price Break
10+ €101,41
19+ €95,71
29+ €94,57
39+ €93,43
49+ €92,30
74+ €91,16
99+ €85,46
199+ €84,32
249+ €83,18
499+ €82,04
999+ €79,76
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
76.2mm = 3 inch
Outside Diameter:
127mm = 5 inch
Width:
30.16mm = 1.187 (1-3/16) inch
Seals / Shields:
None
Technical
d 76.2mm
D 127mm
T 30.162mm
Dynamic load 138 kN
Static load 204 kN
Fatigue load limit Pu 24 kN
Reference speed 3800 rpm
Limiting speed 5300 rpm
Weight 1.9 kg
d1 101mm
B 31mm
C 22.225mm
r1r2 min 3.5mm
r3r4 min 3.3mm
a 27mm
da max 88mm
db min 89.5mm
Da min 112mm
Da max 114mm
Db min 120mm
Ca min 5mm
Cb min 7.5mm
ra max 3mm
rb max 3mm
Calculation factor e 0.43
Calculation factor Y 1.4
Calculation factor Y0 0.8
