Renold Synergy 40-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Renold Synergy 40-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Regular price
€70,92
ex VAT
Regular price
Sale price
€70,92
ex VAT
In stock
Price Break
2+
€54,02
5+
€50,98
10+
€50,37
29+
€49,77
49+
€49,16
75+
€48,55
100+
€45,52
200+
€44,91
250+
€44,30
500+
€43,70
1000+
€42,48
Description
Description

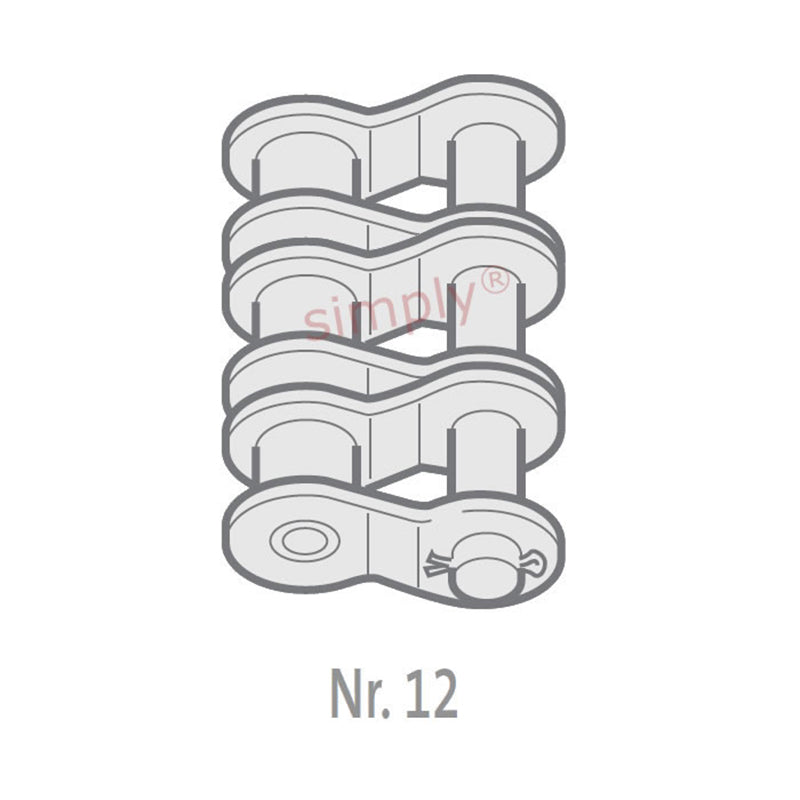

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.92mm |
| Plate Height max (D) | 11.2mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 3.97mm |
| Pin Length max (H2) | 45.1mm |
| Connecting Link Extension max (J) | 2.1mm |
| Transverse Pitch nom (K) | 14.38mm |
| ISO606 Tensile Strength min | 41700 N |
| Weight | 0.02kg/m |
