SKU: 40-3-BB-NO26-RENOLD
Renold Blue Box 40-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Renold Blue Box 40-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Regular price
€15,22
ex VAT
Regular price
Sale price
€15,22
ex VAT
In stock
Price Break
10+
€13,55
19+
€12,78
29+
€12,63
39+
€12,48
49+
€12,33
74+
€12,18
99+
€11,42
199+
€11,26
249+
€11,11
499+
€10,96
999+
€10,65
Couldn't load pickup availability
Description
Description

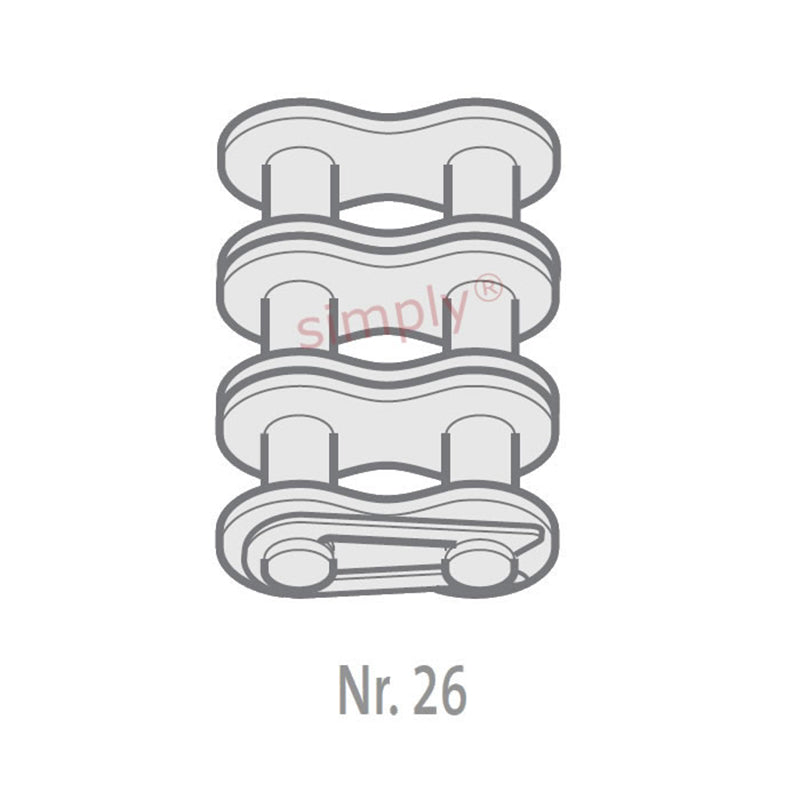

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.92mm |
| Plate Height max (D) | 11.2mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H2) | 45.1mm |
| Connecting Link Extension max (J) | 2.1mm |
| Transverse Pitch nom (K) | 14.38mm |
| ISO606 Tensile Strength min | 41700 N |
| Weight | 0.03kg/m |
