SKU: 40-1-BB-NO30-RENOLD
Renold Blue Box 40-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/2 inch Pitch
Renold Blue Box 40-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/2 inch Pitch
Regular price
€13,36
ex VAT
Regular price
Sale price
€13,36
ex VAT
In stock
Price Break
10+
€11,89
19+
€11,22
29+
€11,09
39+
€10,96
49+
€10,82
74+
€10,69
99+
€10,02
199+
€9,89
249+
€9,75
499+
€9,62
999+
€9,35
Couldn't load pickup availability
Description
Description

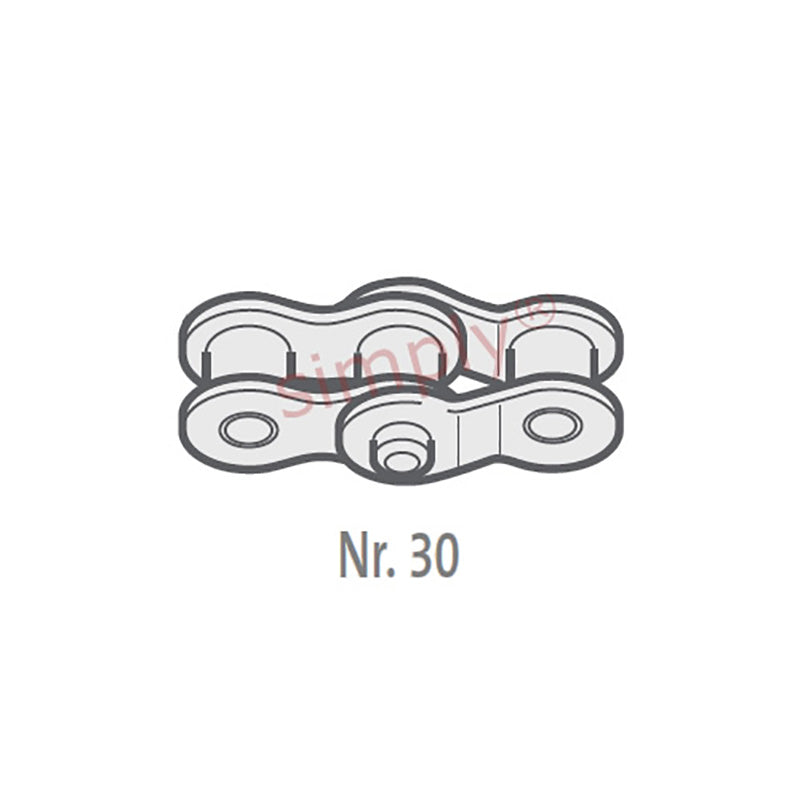

| Renold No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.92mm |
| Plate Height max (D) | 11.2mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H2) | 16.4mm |
| Connecting Link Extension max (J) | 2.1mm |
| ISO606 Tensile Strength min | 13900 N |
| Weight | 0.01kg/m |
